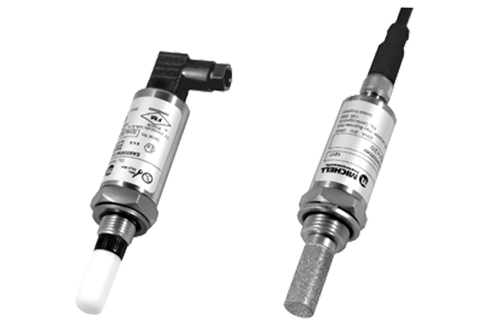

The Easidew Dew Point Transmitter (EA2/EA34) series is easy to install and maintain, capable of measuring dew point and humidity, and provides process connection ports and electrical connectors.

The range of Easidew dew point transmitter (EA2/EA34) is from -110 to+20 ℃ dp, and one inventory product can be used for all industrial dryer applications from level 1 to level 6.

The Easidew series industrial transmitters adopt new advanced ceramic technology from Michell, providing stable, reliable, and reproducible humidity measurement for all dew point applications.

Easy to install

The flexible product design ensures fast and economical installation.

• Mini DIN 43650 C-type or M12 5-pin electrical connector

• 5/8 "WWF, 3/4" WWF, G 1/2 "BSP process connection

• KF40 glove box flange process connection

• 316 stainless steel transmitter sampling sleeve

• On site configuration and diagnostic communication tools

Global Certification

The Easew series has received extensive certification and can meet different application requirements worldwide.

• Easidew I.S. - ATEX, UKCA & IECEx

• Easidew I.S.- cQPSus （United States and Canada）

• Easidew I.S. - EX-TR CU

• Easidew - UL license

• All Easews have been recognized by Canadian pressure vessels(CRN)

Security and integrity

Mechanical design considers the health and safety quality requirements of end-users, providing high process pressure limits, as well as precise product traceability and quality levels.

• High performance 525 bar process medium limit

• Optional gas path material BS EN 10204 3.1 material certification

• Optional oxygen enriched service cleaning

• 3-point verification certificate

measurement performance

This transmitter adopts ceramic measurement technology, combined with a new generation of precision microcontroller electronic devices, which can provide accurate and stable measurements within the product life of the transmitter.

• Precision ±2°Cdp

• Quickly respond to humidity changes

Flexibility

EasidewThe transmitter is equipped with an RS485 communication system, and customers can use the communication toolkit to modify the range and units。

• Rearrange 4-20mA within the range of -110 to+20 ° Cdp

• Humidity measurement - Dew point，ppmV

Highlight

• Range-110到+20°Cdp

• Dew point or ppmv humidity output

• Two wire power supply circuit connection

• Precision ±2°Cdp

• Traceable verification certificate

• Reduce ownership costs and simplify maintenance

• 316 Stainless steel sensor and sampling sleeve

• 5/8” UNF、3/4” UNF、G 1/2” Process connection

• KF40 Glove box flange

• MiniDIN 43650, M12 Electrical connector

• Oxygen cleaning service
