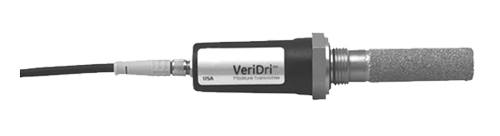

VeriDri moisture transmitters provide dryer manufacturers and other original equipment manufacturers with competitive pricing and simple, accurate, and reliable measurement of moisture in their gases.

VeriDri is a loop powered transmitter with 4 to 20mA output, offering multiple factory configured output ranges covering an overall humidity range of -130 ° F to 70 ° F or -110 ° C to 20 ° C dew point temperatures. When operating at constant pressure, it also has multiple PPMv moisture output ranges, with an overall range of 0 to 10000 PPMv moisture. Pressure information must be provided to the factory when placing an order.

Improve product efficiency and performance

VeriDri can be used to significantly improve the energy and efficiency of regenerative gas drying systems. By monitoring the moisture content at the outlet of the dryer, the regeneration of the desiccant bed can be initiated as needed, rather than a timed cycle. This process has been adopted by many major dryer manufacturers, improving performance and significantly saving energy costs.

In addition, VeriDri can be used to monitor the operation of the overall dryer, determine regular maintenance intervals, and detect operational failures.

Advanced moisture sensor technology

VeriDri combines technologically advanced alumina moisture sensors with state-of-the-art software for electronic products that have comparable overall performance.

NIST traceable calibration

The excellent sensitivity, response speed, calibration stability, and wide dynamic range make Panametrics alumina moisture probes the performance and value standard for industrial moisture measurement.

They are suitable for laboratory and industrial moisture measurement applications in gases and non-polar liquids under various process conditions.

All moisture probe calibrations are traceable to NIST.

Install flexible OEM applications

The sturdy and compact VeriDri transmitter is designed for OEM installations with limited space. It can be directly installed in the process flow, and if necessary, it can also be installed in the adopted system.

Feature

· low cost

· Thin film alumina moisture sensor technology

· All digital technology based on microprocessors ensures reliability

· Compact size

· Protection level of Type4X/IP67

· Circuit power supply 4-20mA output

· -Measurement range of dew point temperature from 130 ° F to 70 ° F (-110 ° C to 20 ° C) or moisture content from 0 to 10000 PPMv (constant pressure)

· Traceable NIST calibration
