Easew Online Premium Edition is a multifunctional, high-performance dew point transmitter with a measurement range of -110...+20 ° C (-166...+68 ° F) dew point and a wide range of applications. The dew point transmitter adopts a new metal oxide ceramic technology, providing stable, reliable, and reproducible humidity measurement, as well as incorporating a new process monitoring instrument.

This product is equipped with all the necessary components to install sensors in the airflow and start measuring quickly and easily.

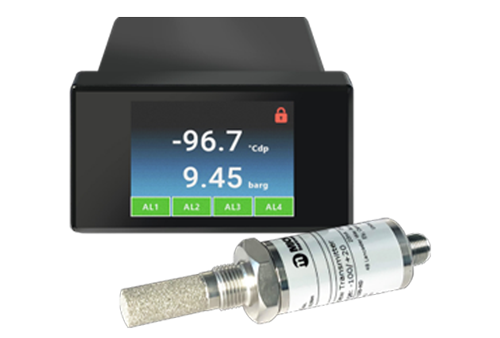

• Easew M12 digital output sensor

• Touch screen display with 1/8 DIN mounting form

• Stainless steel sensor sampling sleeve and 1/8 "NPT inlet and outlet

• Sensor cable - optional length

The dew point transmitter is equipped with a 13 point calibration certificate for dew points ranging from -100 to+20 ° C (-148...+68 ° F), traceable to national standards.

Easew Advanced Online Dew Point Meter can be used for most humidity measurement applications, displaying data in units of ° C or ° F dew point, ppmV, lb/mmscf or g/m3, with a measurement range of -110 to+20 ° C (-166 to+68 ° F) and a pressure of up to 525 bar (7614 psi).

To calculate moisture content based on dew point, it is necessary to know the system pressure. This dew point meter can compensate for pressure changes by using dynamic pressure sensor inputs, and can also accept fixed pressure input values.

Highlight

• Measurement range -110...+20 ° C (-166...+68 ° F) dew point

• Dew point or moisture content output

• Accuracy ± 1 ° C (± 1.8 ° F) dew point

• Pressure indication and compensation

• Touch screen reconfiguration

• 3 x 4... 20 mA output and 4 relay outputs

• Modbus RTU based on RS485 output

• Optional AC or DC power supply

• Including sampling sleeve and cable

• Traceable 13 point calibration certificate
