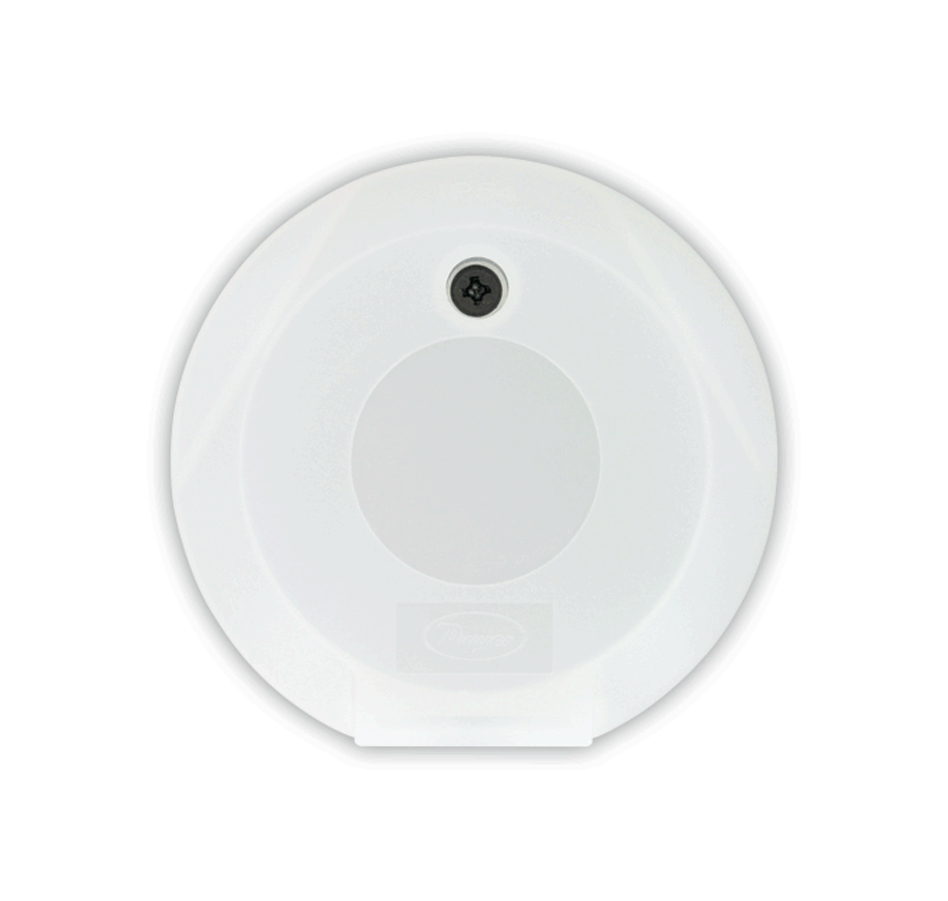

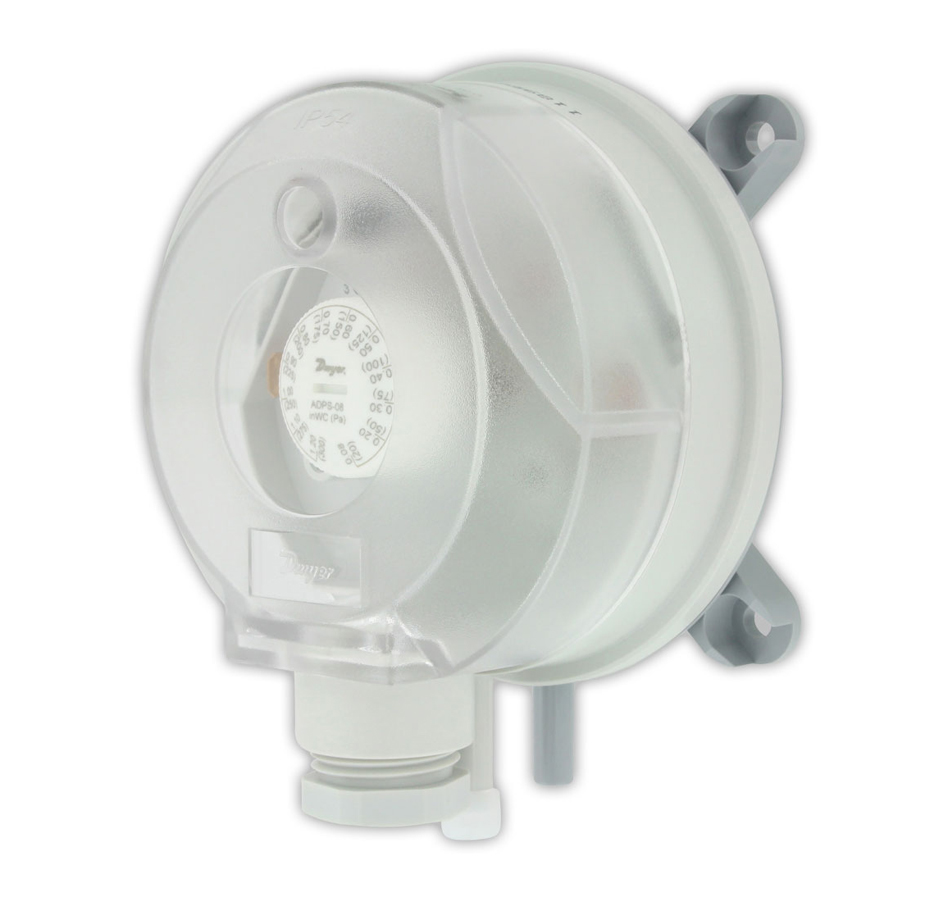

Dwyer Micro Differential Pressure Switch ADPS / EDPS / BDPA / BYDS Series
Product Introduction：
Setpoint adjustment knob with dual scales- Consultation Hotline：18615230752 Landline：0531-88975421
Product Details
Technical parameters
Application scenarios
Optional accessories
Contact Us

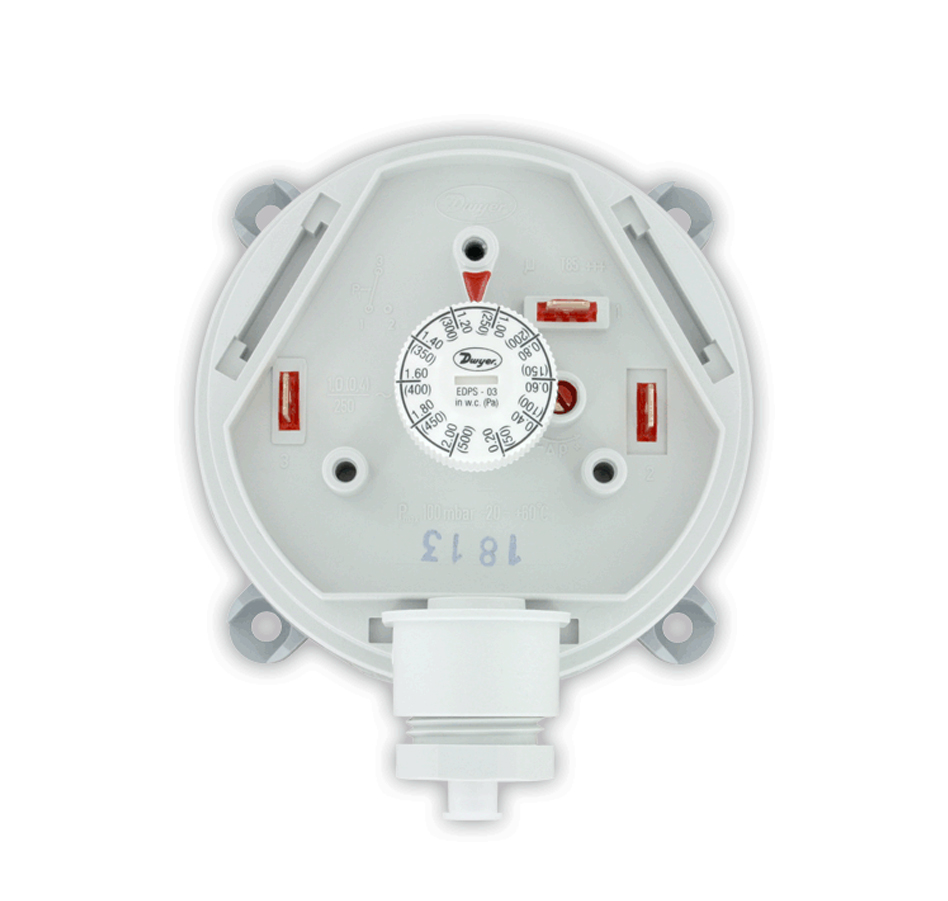

The ADPS / EDPS / BDPA / BYDS series adjustable differential pressure switches are designed to monitor air pressure, positive pressure, vacuum, and differential pressure. The knob for setting the point has dual markings: inches of water column and Pa, making it easy to set the desired point. The ADPS range goes from 0.08 in w.c. (20 Pa) to 20 in w.c. (5000 Pa). With a silicone diaphragm and PA 6.6 body, the ADPS series is ideal for use with air and other non-combustible gases. EDPS models meet UL508 standards and are made of sealed plastic. Their compact size, adjustment knob, and low cost make ADPS/EDPS a perfect choice for HVAC applications.
● Using the adjustment knob, you can easily change the switch setpoint by connecting a differential pressure gauge, reducing the need for extra components
● When duct control and monitoring are needed, this low-cost product makes it an ideal solution for BAS and HVAC applications
● The relay contact signal is easy to integrate into DDC or building automation systems
