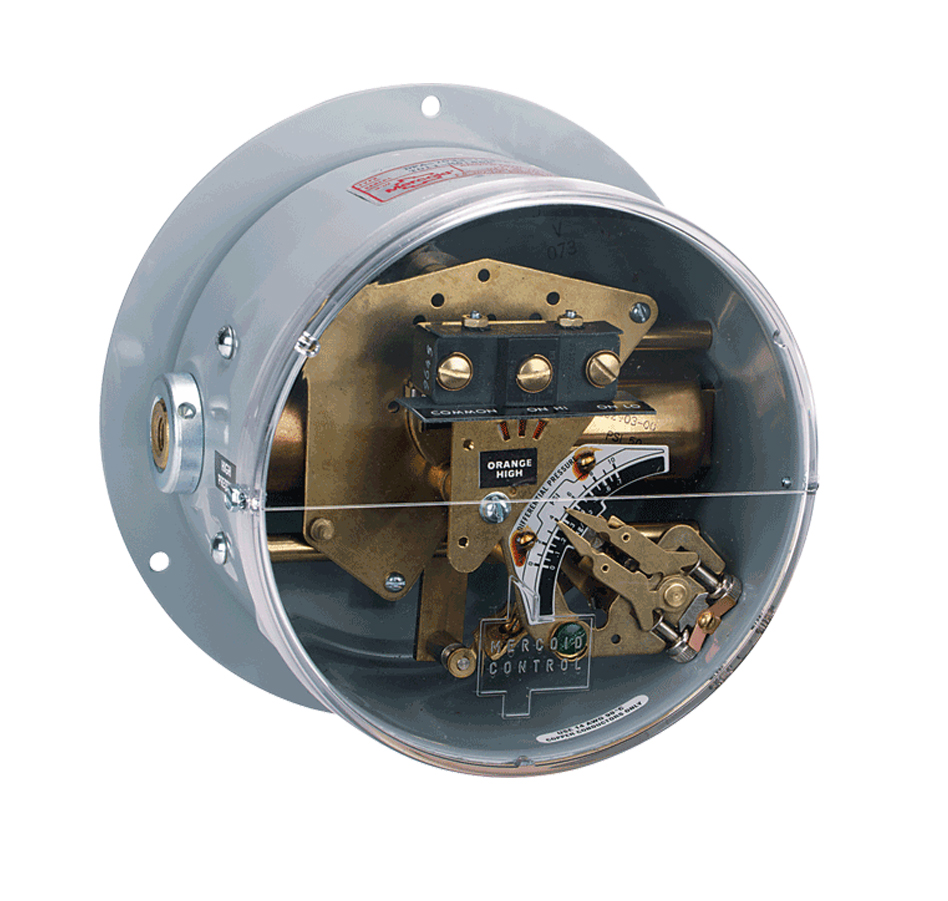

The DX series is a differential pressure switch that provides a contact output based on the difference between two pressure sources. Wet materials made of brass and fluor elastomer are suitable for most gas and water-based solutions. The switch can be used for low differential pressure indication, with setpoint pressures dropping as low as 1 psid (0.07 bar). When the pressure difference increases, the differential setpoint range is 2.5 ~ 75 psid (0.17 ~ 5.17 bar), and when it decreases, the range is 1.0 ~ 67 psid (0.07 ~ 4.62 bar). The unit has a high static pressure rating of 200 psig (13.8 bar). It comes in a waterproof, UL 4X rated, dustproof housing suitable for outdoor or washdown installations. Features include an externally adjustable setpoint, an integral mounting flange, and a removable electrical terminal block for quick and easy installation.

●  Differential pressure switch that is suitable for most gas and water-based applications allows multiple uses in the most sophisticated designs

●  Weatherproof housing provides protection in the harsh, wet or dirty environments ensuring switch’s long-service life

●  Removable terminal block reduces installation time
