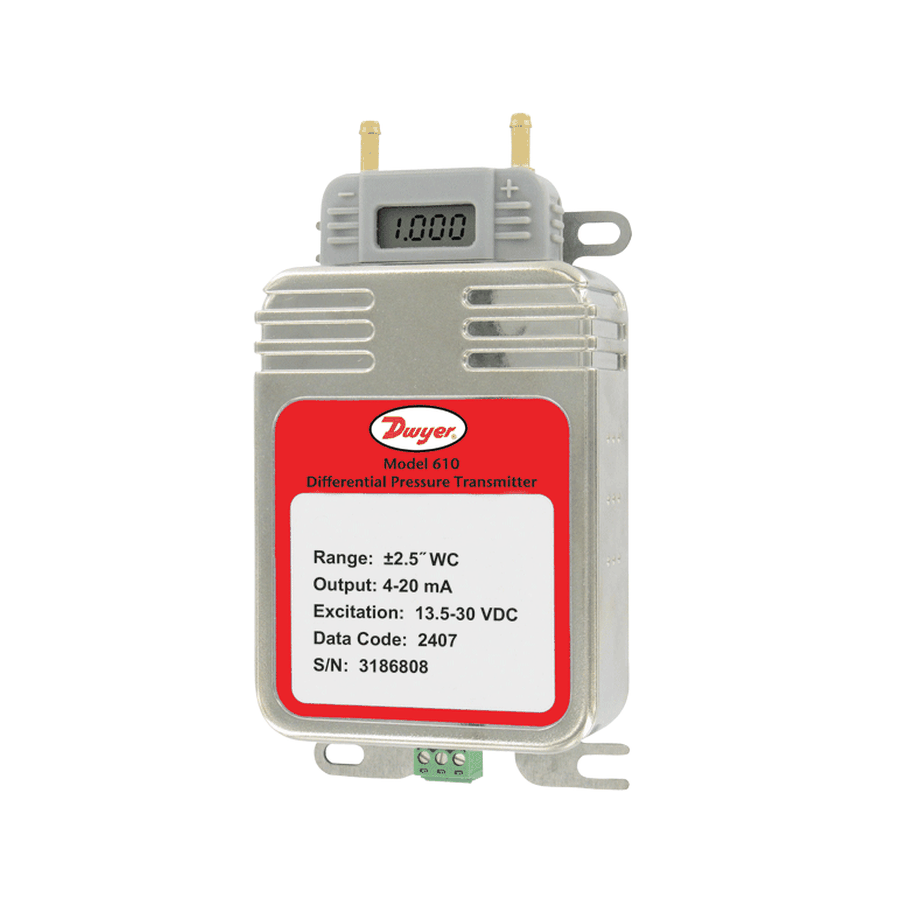

The 610 series low differential pressure transmitters can measure the pressure and flow of air or non-conductive gases with high resolution. Designed for cleanrooms, isolation rooms, and other critical environments, the 610 series is ideal when accurate and reliable pressure monitoring is a must. Easy-to-access pressure ports and electrical connections, a removable process head, and a detachable terminal block make installation quick and easy. The 610 series transmitters are suitable for pressure ranges as low as 0.1 full-scale w.c. They can be ordered with ±0.25% or ±0.5% FS accuracy, base or DIN rail mounting, and options for a digital readout display. Additionally, the calibration button can be activated, allowing users to set zero and span. One button can work with multiple transmitters.

Calibration options are available as accessories.

●  Ranges down to 0.1" w.c. with 0.25% or 0.5% F.S. accuracy

●  Removable process head for simplified installation

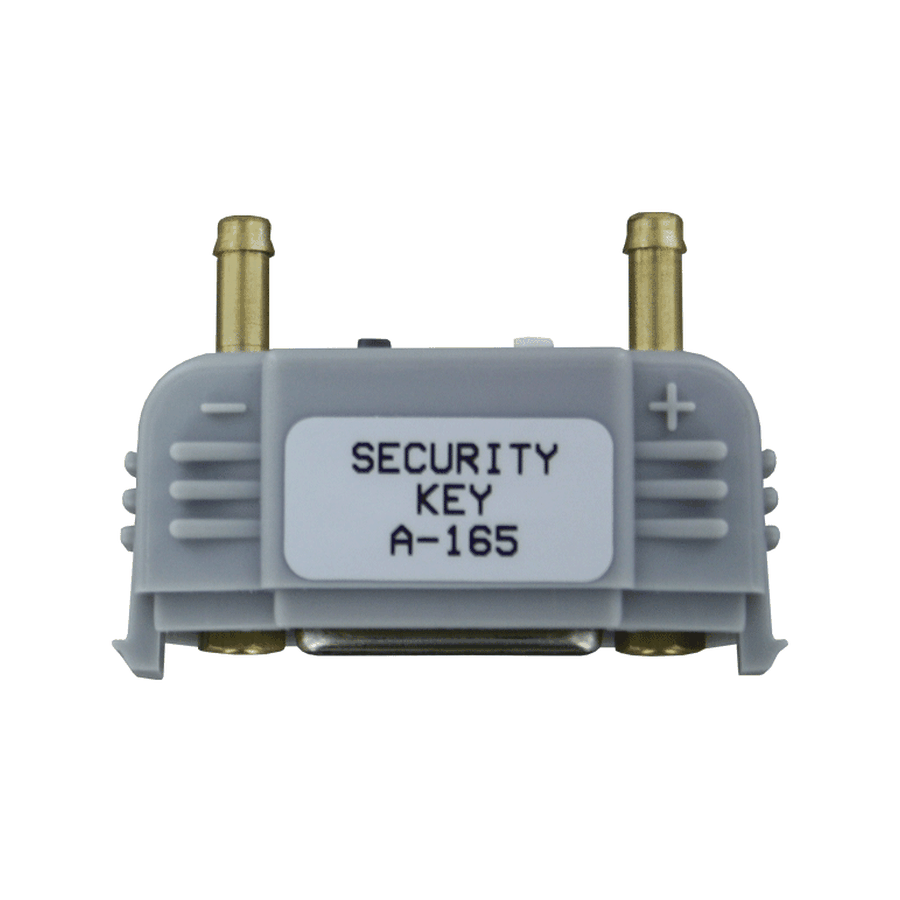

●  Secure operation ensured with calibration only possible via separate calibration key

●  Calibration certificate included with ± 0.25% accuracy models
