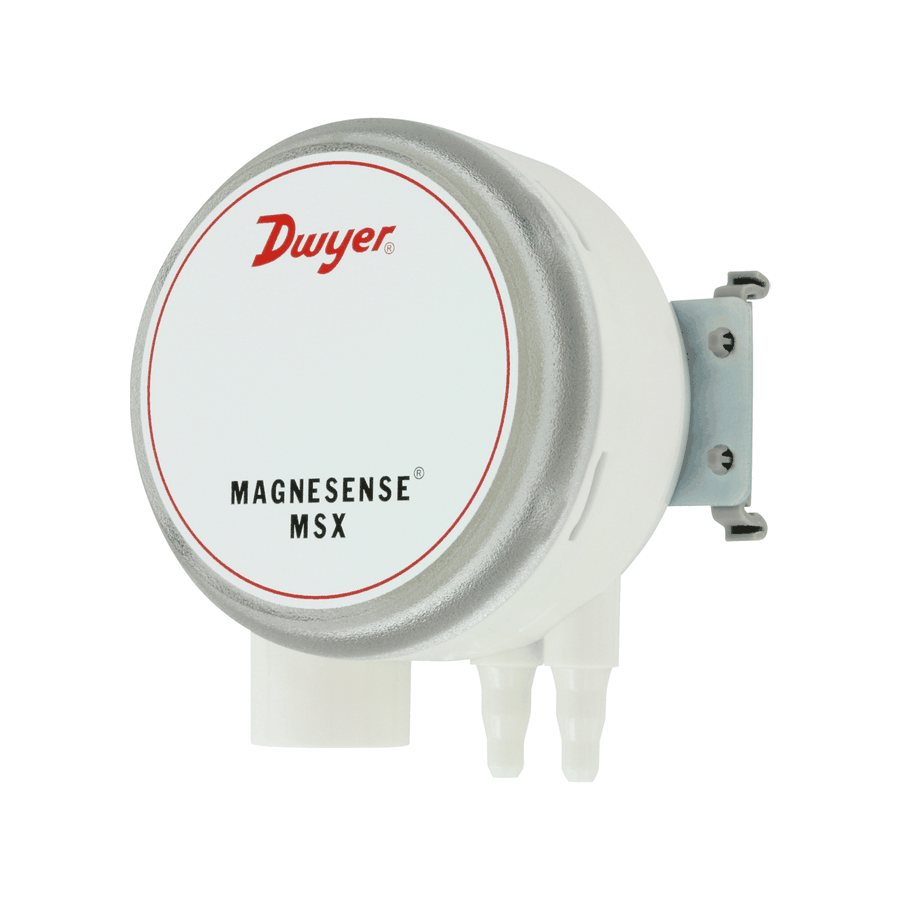

Dwyer MAGNESENSE Differential Pressure Transmitter MSX Series
Product Introduction：
Monitor pressure difference, air velocity, and volume flow- Consultation Hotline：18615230752 Landline：0531-88975421
Product Details
Technical parameters
Application scenarios
Optional accessories
Contact Us
The MSX series Magnesense differential pressure transmitters combine the stability and versatility of the original MS2 series Magnesense II transmitters, making them suitable for building control applications. The MSX simplifies the ordering process to provide the desired configuration, which reduces installation time. The measurement range can be displayed in Pa, mmH₂O, or inH₂O. All pressure ranges can be configured for either unidirectional or bidirectional modes, with a total of 32 ranges available. The MSX transmitters can offer linear pressure output or linear velocity output, and can take the square root from the transmitter. Additional parameters have been added to further expand the square root capability for flow calculations. Dual voltage and milliamp output signals can be used to provide control and device output verification.
· 180° rotatable display for easy reading
· Optional tool-free junction box for quick and convenient wiring
· UL94 V-0 and flame-retardant rating, adding safety for various applications
