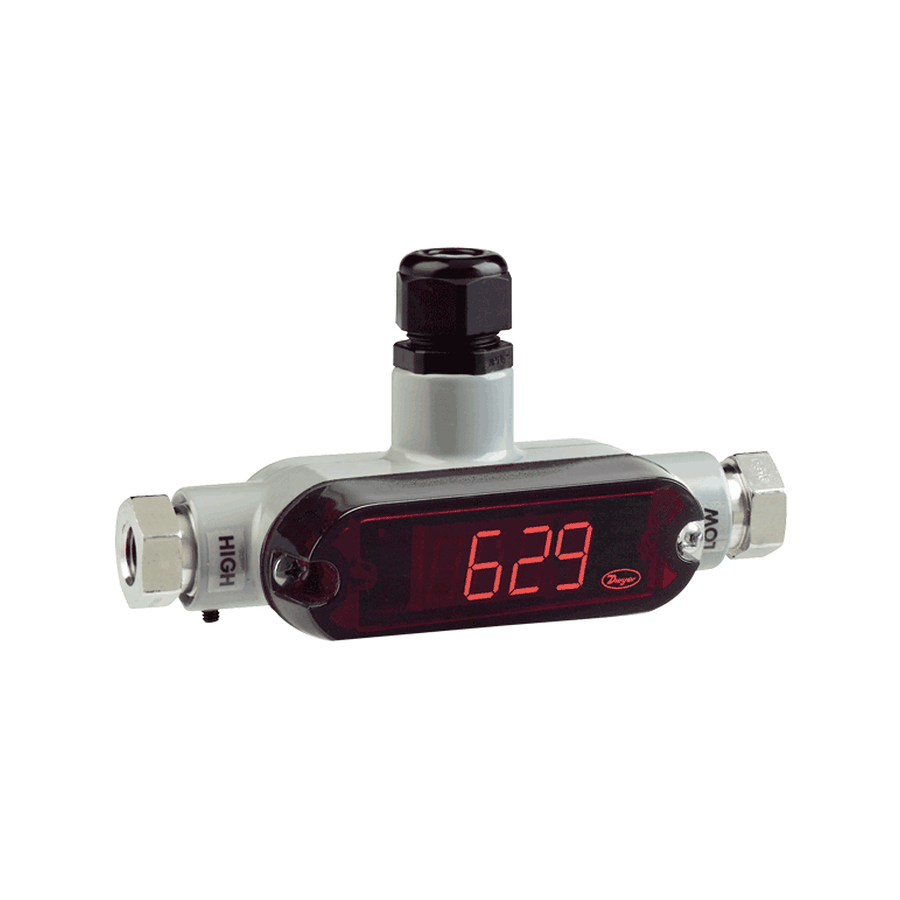

Dwyer Liquid Differential Pressure Transmitter 629 Series
Product Introduction：
- Consultation Hotline：18615230752 Landline：0531-88975421
Product Details
Technical parameters
Application scenarios
Optional accessories
Contact Us
Gas or liquid differential pressure transmitter; multiple ranges: from 0-70KPa to 0-700KPa; accuracy: ±0.5% FS; output: 4-20mA; IP66 housing, dustproof and waterproof.
The 629 series liquid differential pressure transmitter monitors the differential pressure of gases or liquids with 0.5% accuracy. It uses two pressure sensors to measure the differential pressure and outputs a 4-20mA two-wire signal. Its compact internal space reduces the range of moving parts, resulting in faster response time and higher reliability. You can easily wire it and adjust the zero and span by opening the top cover. The 629 series differential pressure transmitter meets the NEMA 4X (IP66) protection standard.
Product Overview
