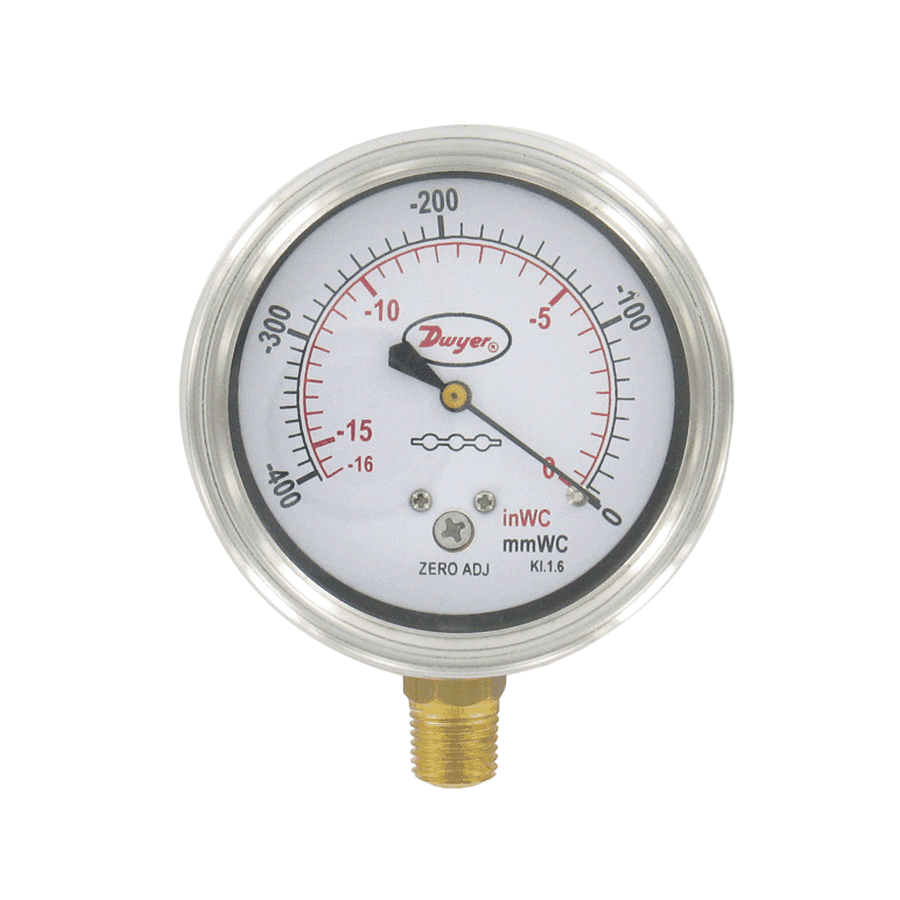

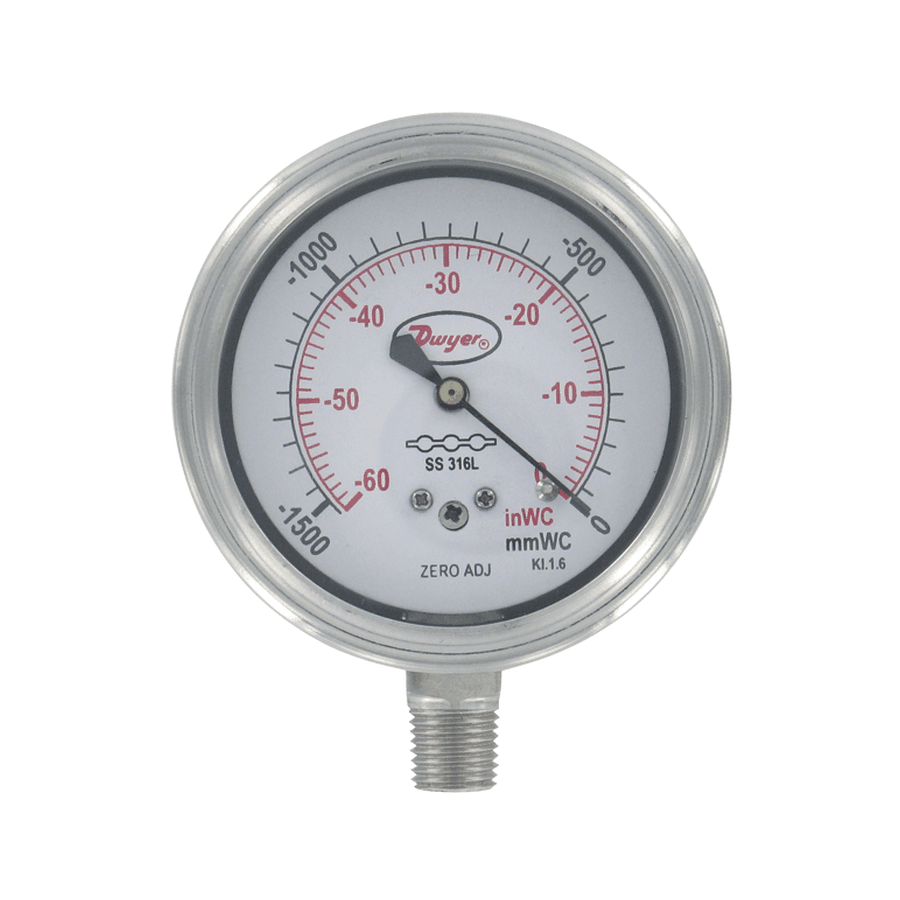

The SGX/SGF series stainless steel low-pressure pressure gauge has dual imperial/metric ranges, with a full range accuracy of ± 1.6%. The SGX/SGF series pressure gauges adopt a 304 stainless steel housing and brass or 316 stainless steel moisture components. The unit can withstand ambient temperatures up to 149 ° F (65 ° C) and processing temperatures up to 212 ° F (100 ° C). Vacuum, composite, and pressure ranges of 235 "W.C. are available. Including on the dial is a convenient zero adjustment screw that allows users to easily reset the needle.

Calibration options can be found in the attachment.

●  Stainless steel housing and wetted parts resist ambient corrosion for longer service life in harsh environments

●  High accuracy gage for applications requiring more precise measurement

●  Models that support vacuum to higher pressure ranges provide a selection to meet specific applications

●  Specified with high ambient and process temperature ratings mean more robust uses and longer service-life

●  Field adjustable zeroing screw simplifies installation and calibration
