FOTRIC 320 Series
Product Introduction：
High-definition infrared imaging spots temperature differences at a glance, leaving no hidden risks.- Consultation Hotline：18615230752 Landline：0531-88975421
Product Details
Technical parameters
Application scenarios
Optional accessories
Contact Us

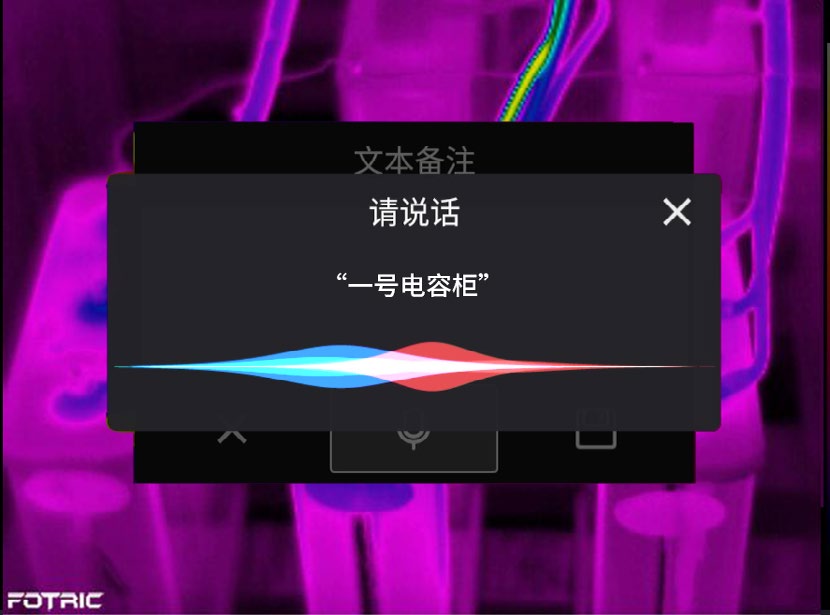

HawkAI Smart Assistant: With four AI features—voice control, voice dictation, text recognition, and smart buttons—it’s your handy tool for automatically naming thermal images on the spot and quickly adding text annotations.
Professional-grade Laser (Distance, Area, Length): Automatically measure distances (up to 50 meters) and calculate the area and length of specific targets on thermal images, with all data synced and saved to the images.
Core Parameters
| Specification | Value |
|---|---|
| Max Infrared Pixels | 384 × 288 — Multiple pixel options for clear, high-definition infrared thermal images |
| Visible-Light Pixels | 13 MP — Industrial-grade digital camera delivers HD visible-light photos |
| Temperature Range | –20 to 650°C — Wide range for electrical and equipment inspection across diverse scenarios |
| Measurement Accuracy | ±2°C or ±2% — Industry-standard accuracy for precise infrared measurement |
| Thermal Sensitivity | 40 mK — Detects temperature differences as small as 0.04°C, presenting rich thermal gradient distribution |
| Standard Lens | 25° × 19° — Manual fine focus; wide-angle and telephoto lenses optionally available |
Crystal-Clear Imaging — Spot Temperature Differences at a Glance | |
 |  |
High-definition infrared imaging reveals temperature differences instantly, exposing hidden risks |

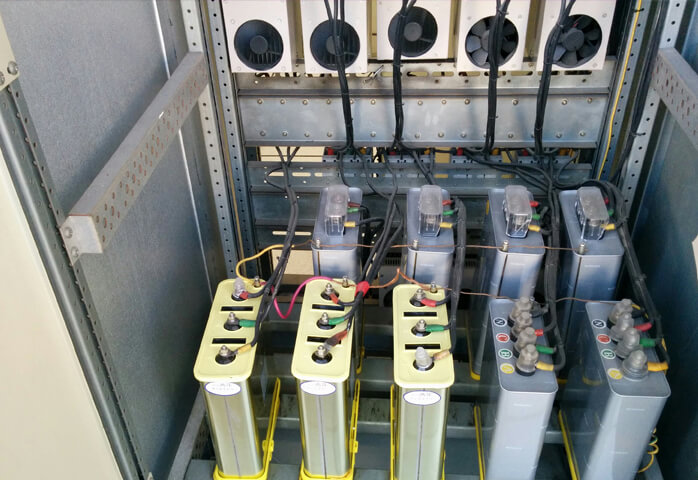

13 MP industrial-grade digital camera captures synchronized visible-light photos |
 |  |

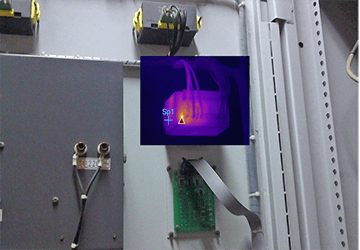

Infrared and visible images overlaid to pinpoint defect locations |

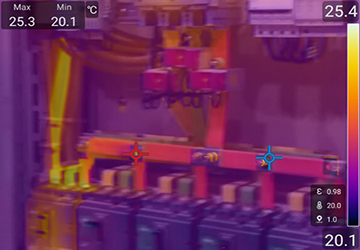

Read temperature at any point directly on the visible-light image |
 |  |

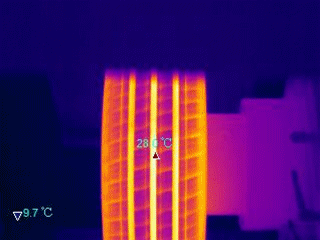

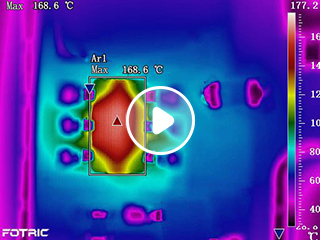

Records the complete temperature-change process for multi-dimensional post-analysis in thermal software |
Universal format for instant export, playback, and sharing |
On-Device Analysis | |
|
|

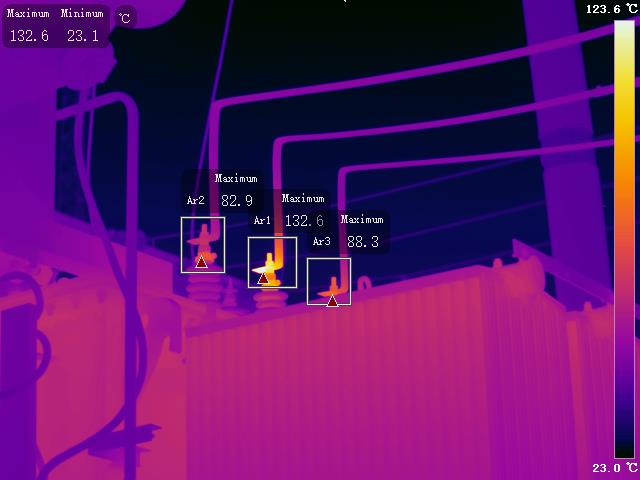

Add up to 9 points, 3 lines, and 6 areas for fast hotspot localization |

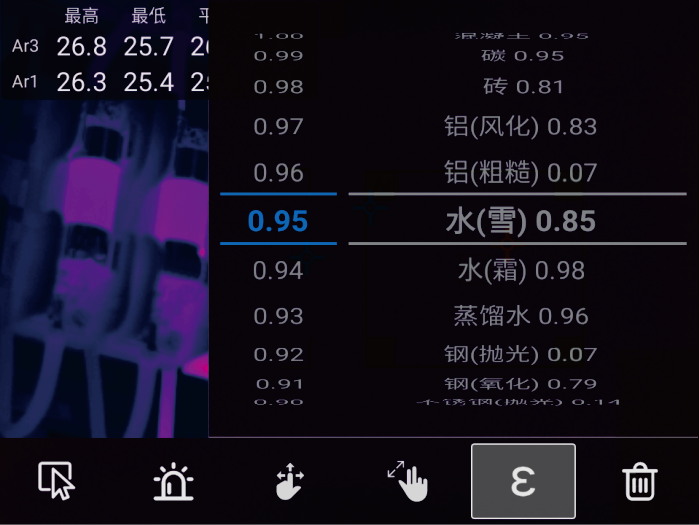

Emissivity (global and local), ambient temperature, reflected temperature, relative humidity, measurement distance, and IR window (temperature and transmittance) corrections ensure accurate measurement |
|
|

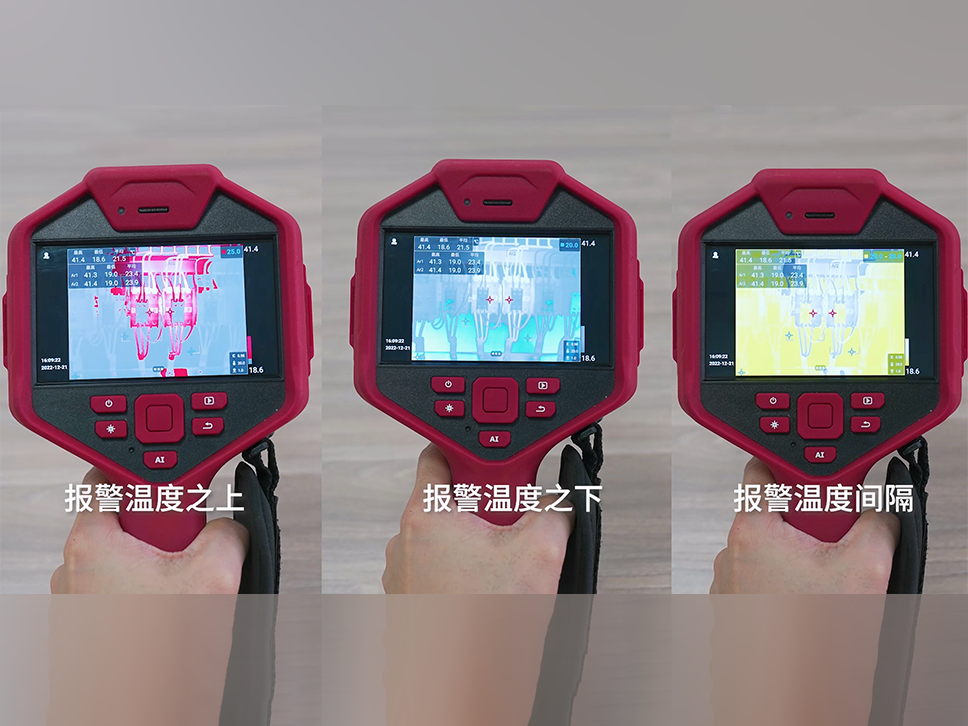

The imager auto-alarms when temperature exceeds set limits, so you spot problems immediately |

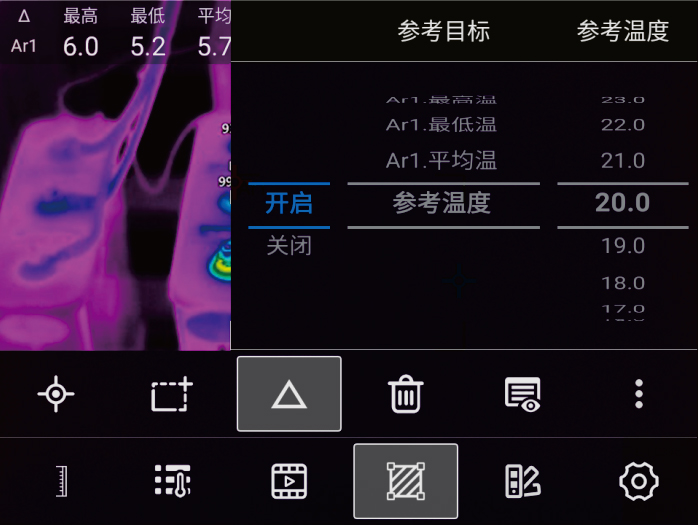

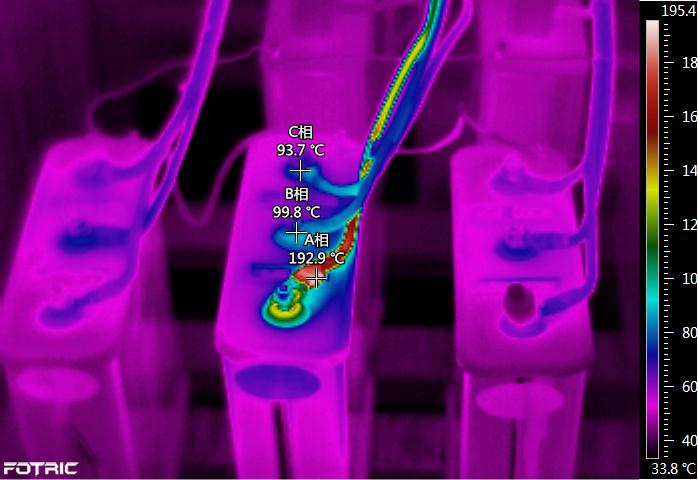

Set ambient temperature as the reference to shield environmental interference and auto-calculate equipment temperature rise, plus automatic inter-phase temperature difference of electrical equipment |
Special Features | |
|
|

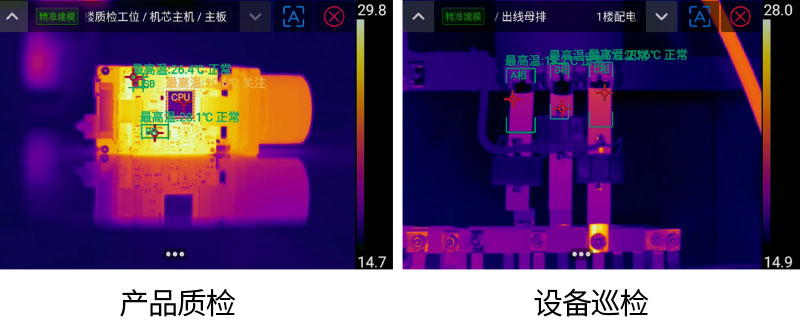

Four AI functions: voice control, voice dictation, text recognition, and smart keys — convenient tools for auto-naming images and quickly adding text annotations on site |

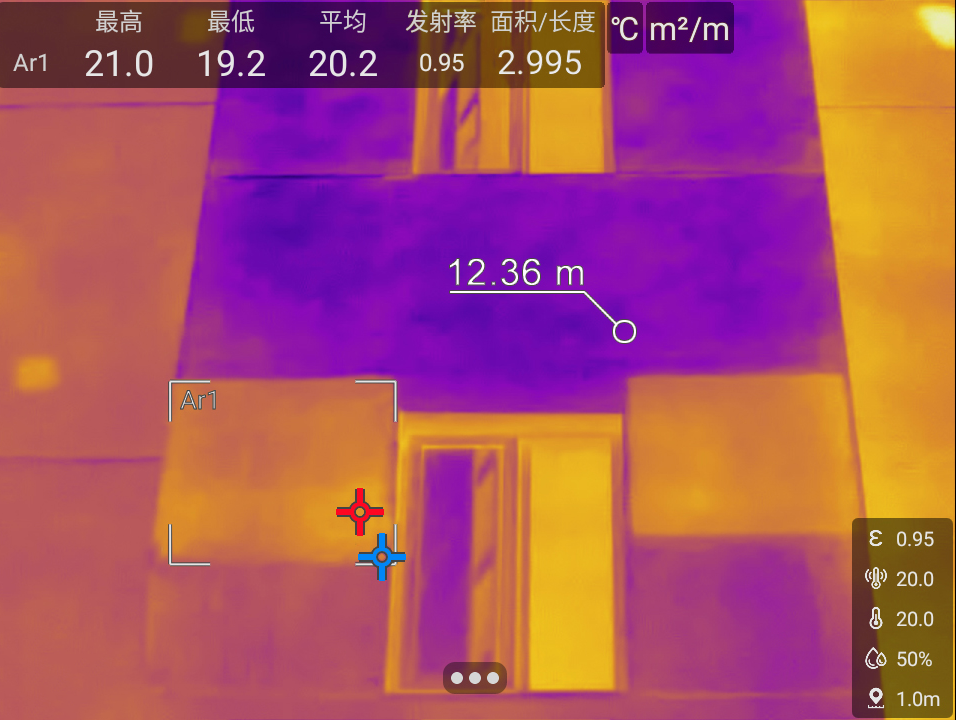

Auto-measures detection distance (up to 50 m), auto-calculates area and length of specific targets on thermal images, and syncs data to the image |
|
|

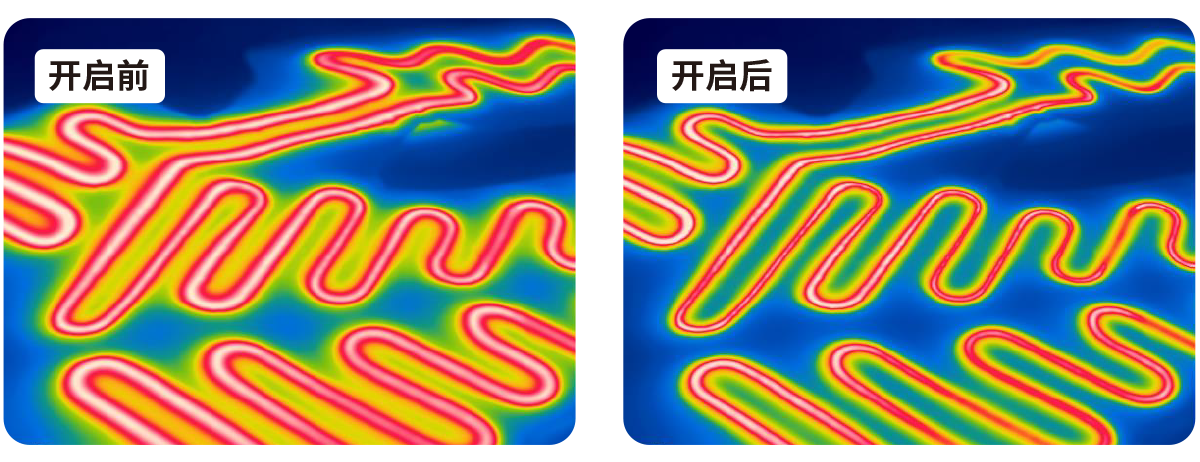

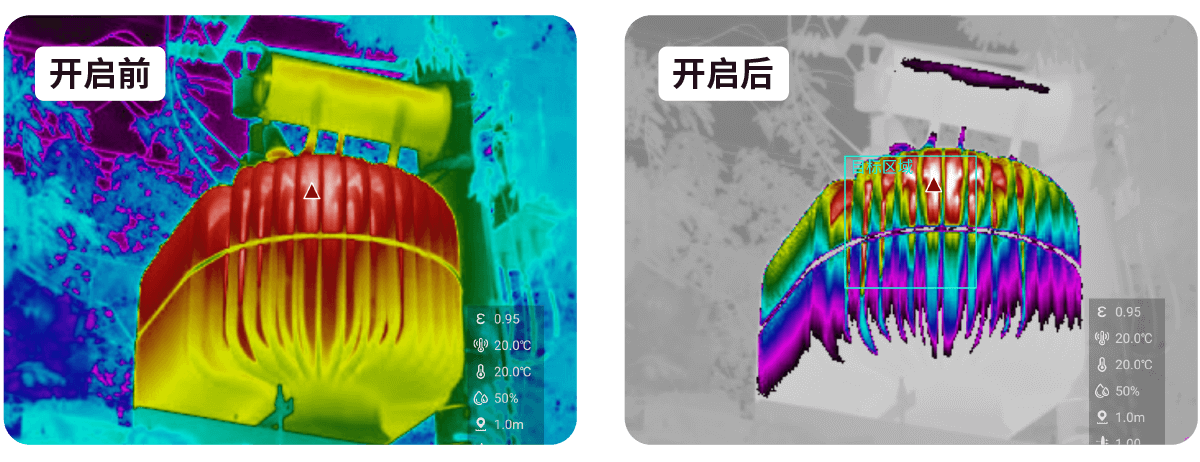

Greatly enhances fine-detail thermal contrast of specific targets in complex scenes while reducing interference from non-targets |

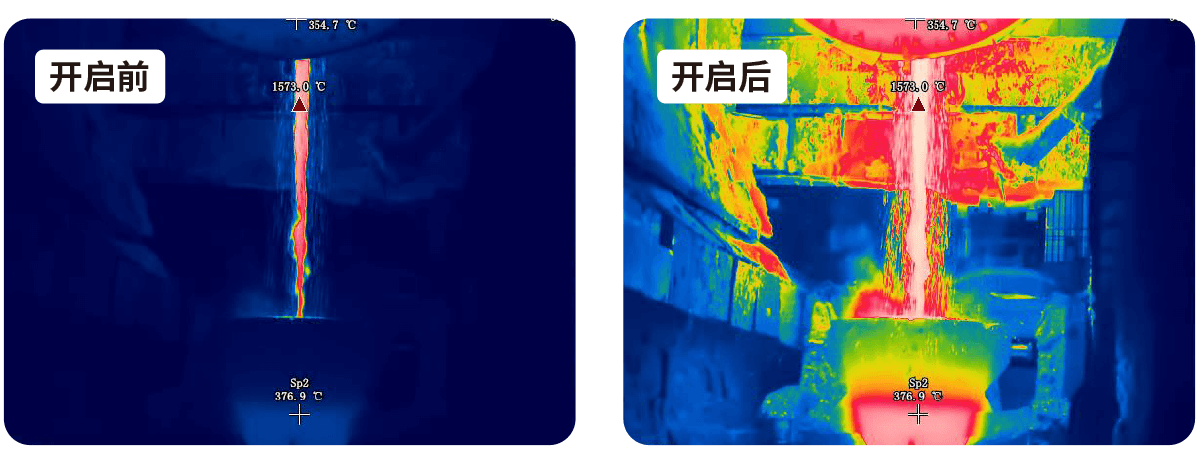

Effectively shields high-heat-source interference, clearly showing thermal gradient changes and avoiding blackout-style displays |
|  |
Optimizes color pixel distribution to sharpen image line definition for clearer contours |
Easily control the imager remotely via phone or PC — ideal for test scenarios where personnel cannot enter |
Rugged Hardware
| Feature | Description |
|---|---|
| 5" Large Display | IPS LCD touchscreen with Gorilla explosion-proof cover |
| 32 GB Storage | Standard 32 GB storage card, expandable up to 2 TB |
| 2 m Drop Rated | Built to survive accidents, stable even on industrial sites |
| IP54 Protection | Dust and water resistant for all-weather operation |
| 8-Hour Battery Life | ≥4 hours per battery; 2 batteries included |
| Dual Power Options | Desktop charger or DC 12 V direct charge |
| OTA Upgrade | OTA remote upgrade and USB drive local upgrade for faster software iteration |
| Data Transfer | USB Type-C, WiFi, HDMI, Bluetooth, cellular network, TF card, and FTP fast transfer |
Professional Analysis Software

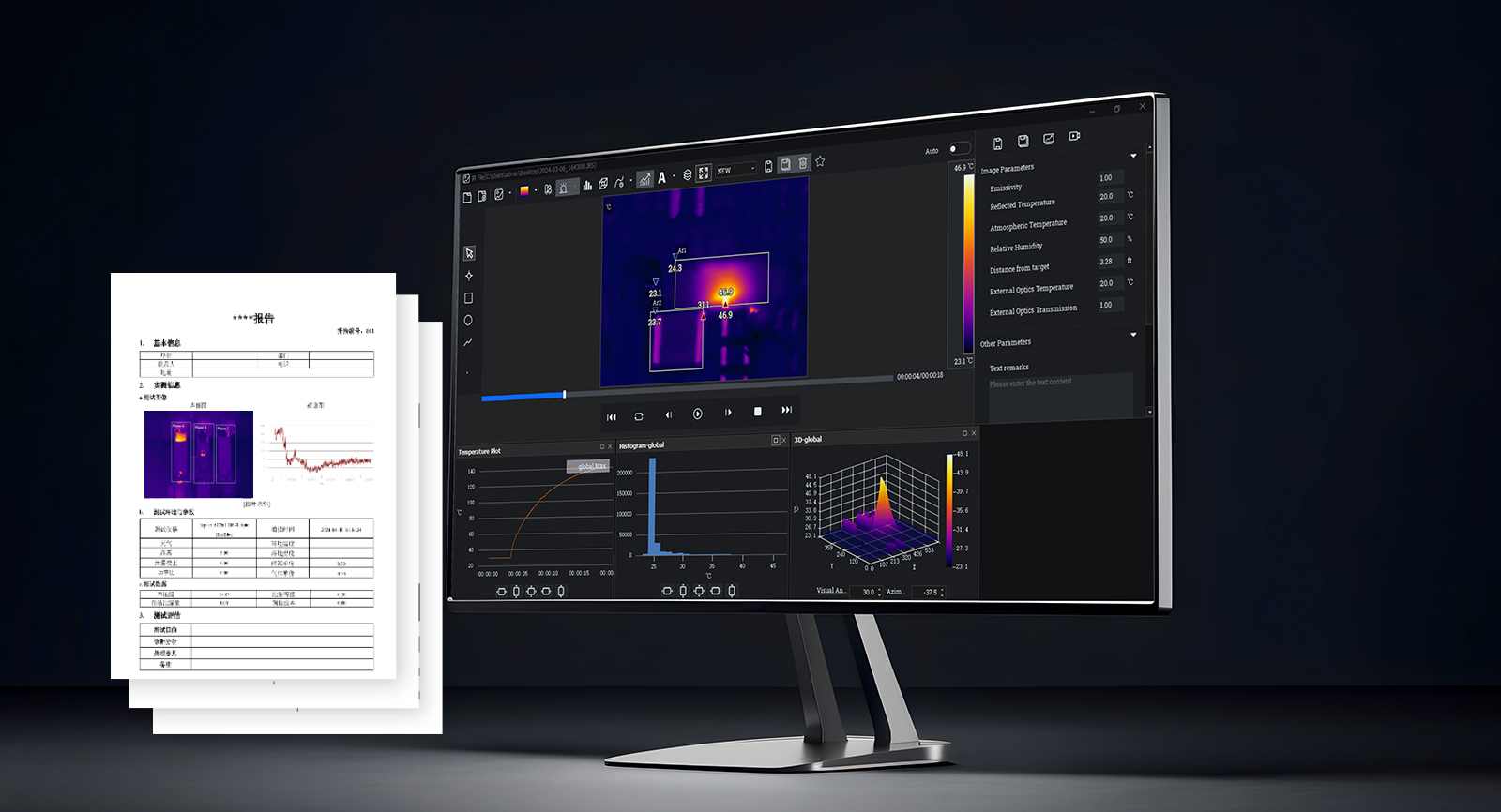

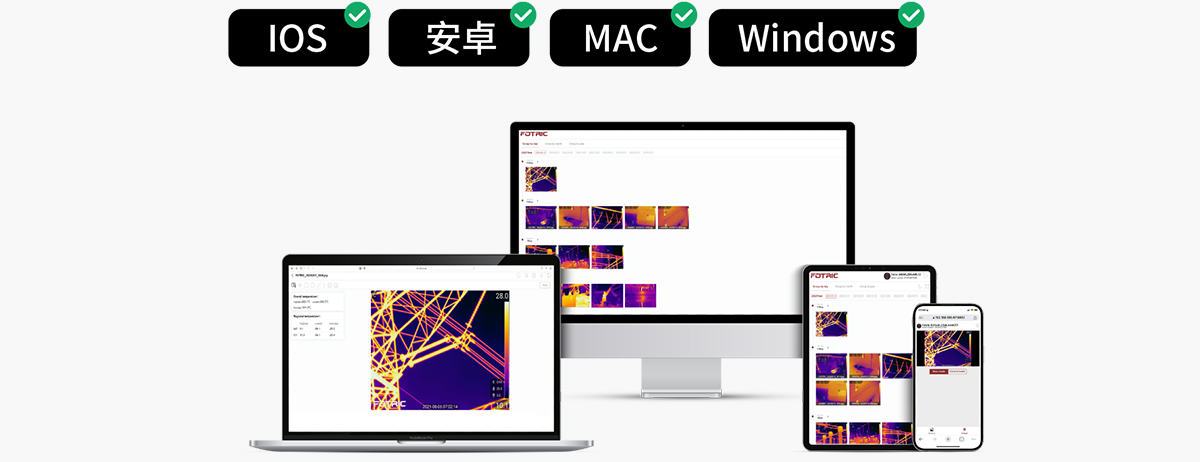

FOTRIC provides the free AnalyzIR professional thermal analysis software. Features such as temperature-time curves, temperature matrix, and frame-by-frame analysis enable multi-dimensional analysis of thermal images and temperature videos. It also supports one-click generation of professional analysis reports — making reporting easy and work more efficient.
