FOTRIC 320L Series
Product Introduction：
Multiple pixel options let you capture high-definition infrared thermal images. The industrial-grade digital camera provides clear visible light photos.- Consultation Hotline：18615230752 Landline：0531-88975421
Product Details
Technical parameters
Application scenarios
Optional accessories
Contact Us
We offer the AnalyzIR professional thermal imaging analysis software for free. It lets you analyze thermal images and temperature videos in multiple ways, like using 'temperature-time curves,' 'temperature matrices,' and frame-by-frame analysis. Plus, you can generate professional analysis reports with just one click, making reporting easy and work more efficient.

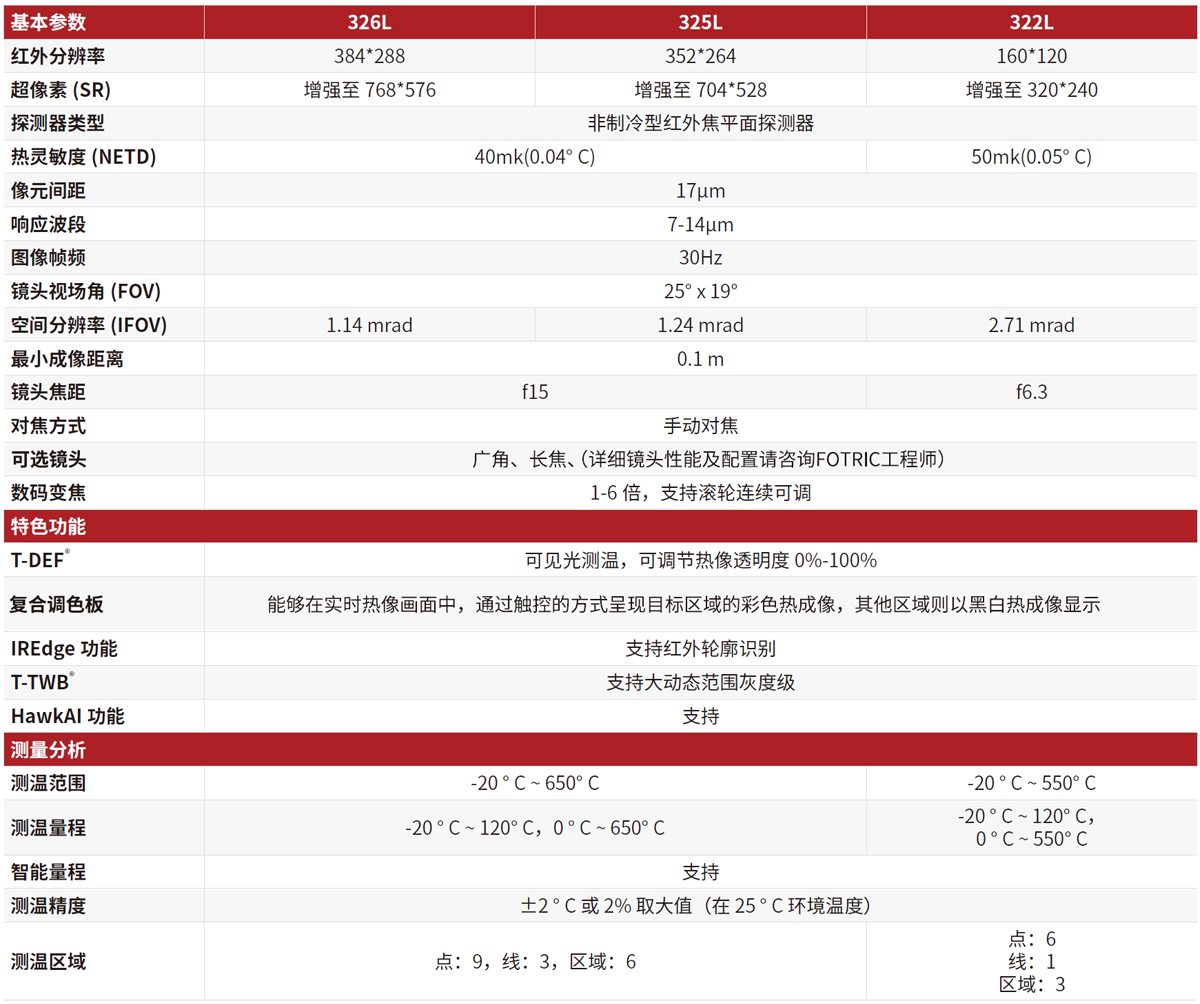

Core Parameters
| Specification | Value |
|---|---|
| Max Infrared Pixels | 384 × 288 — Multiple pixel options for clear, high-definition infrared thermal images |
| Visible-Light Pixels | 13 MP — Industrial-grade digital camera delivers HD visible-light photos |
| Temperature Range | –20 to 650°C — Wide range for electrical and equipment inspection across diverse scenarios |
| Measurement Accuracy | ±2°C or ±2% — Industry-standard accuracy for precise infrared measurement |
| Thermal Sensitivity | 40 mK — Detects temperature differences as small as 0.04°C, presenting rich thermal gradient distribution |
| Standard Lens | 25° × 19° — Manual fine focus; wide-angle and telephoto lenses optionally available |
Crystal-Clear Imaging — Spot Temperature Differences at a Glance | |
 |  |

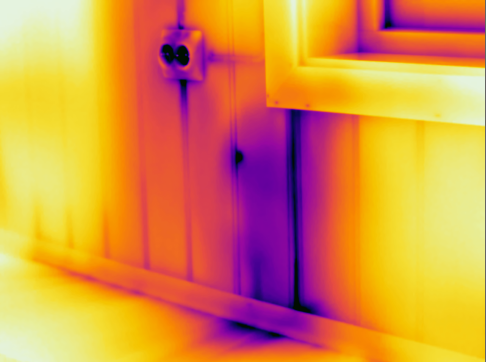

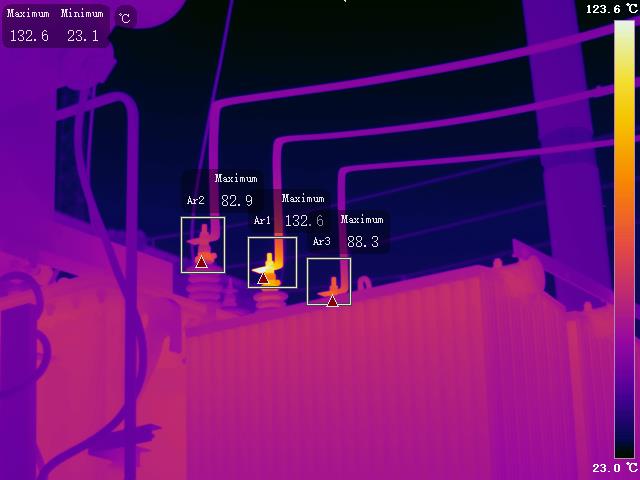

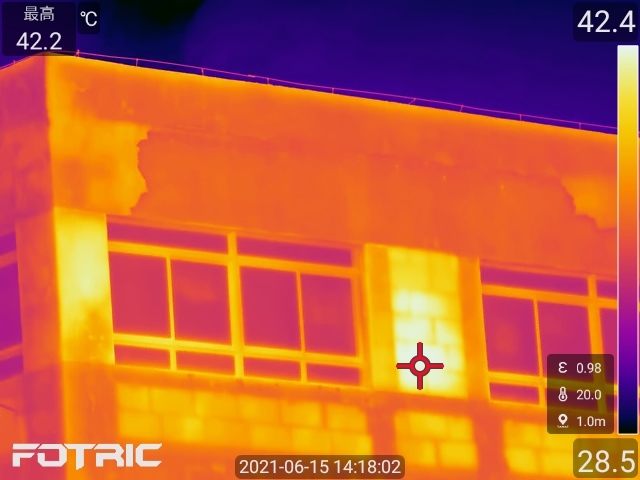

High-definition infrared imaging reveals temperature differences instantly, exposing hidden risks |

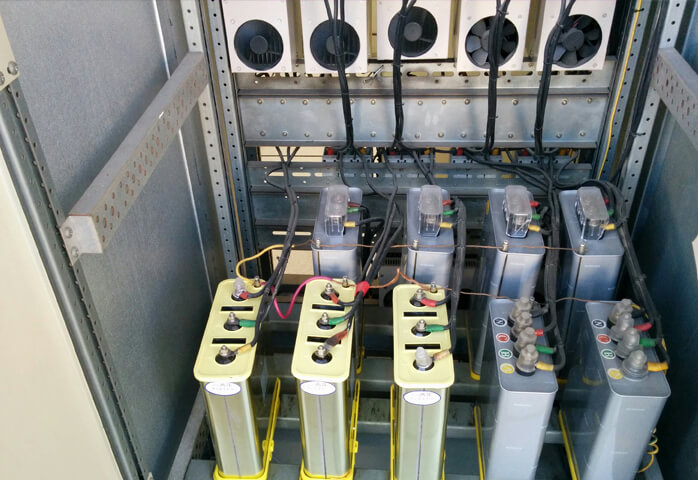

13 MP industrial-grade digital camera captures synchronized visible-light photos |
 |  |

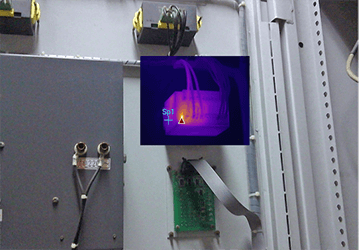

Infrared and visible images overlaid to pinpoint defect locations |

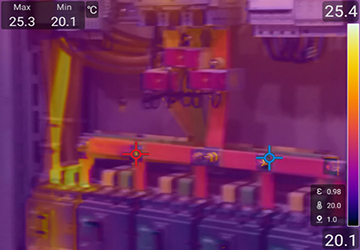

Read temperature at any point directly on the visible-light image |
 |  |

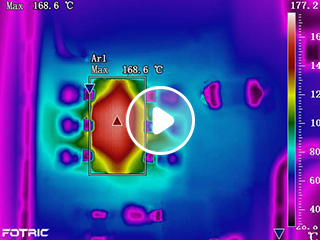

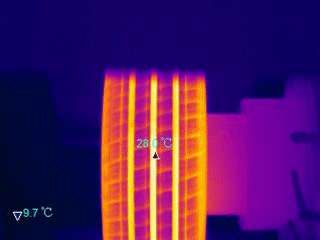

Records the complete temperature-change process for multi-dimensional post-analysis in thermal software |
Universal format for instant export, playback, and sharing |
On-Device Analysis | |
|
|
Add up to 9 points, 3 lines, and 6 areas for fast hotspot localization |

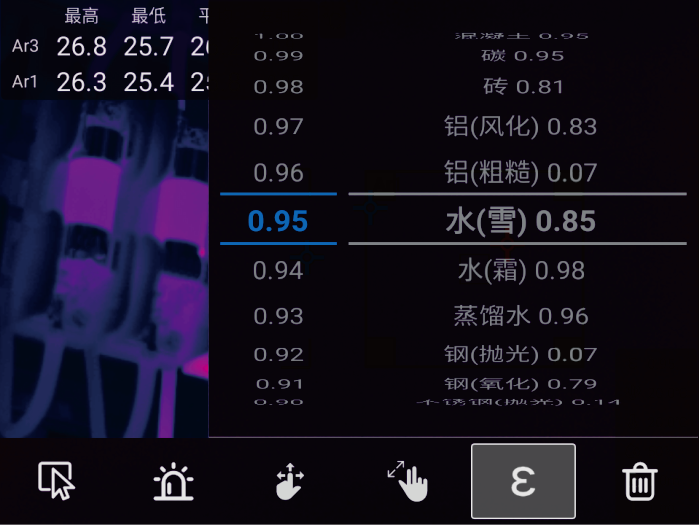

Emissivity (global and local), ambient temperature, reflected temperature, relative humidity, measurement distance, and IR window (temperature and transmittance) corrections ensure accurate measurement |
|
|

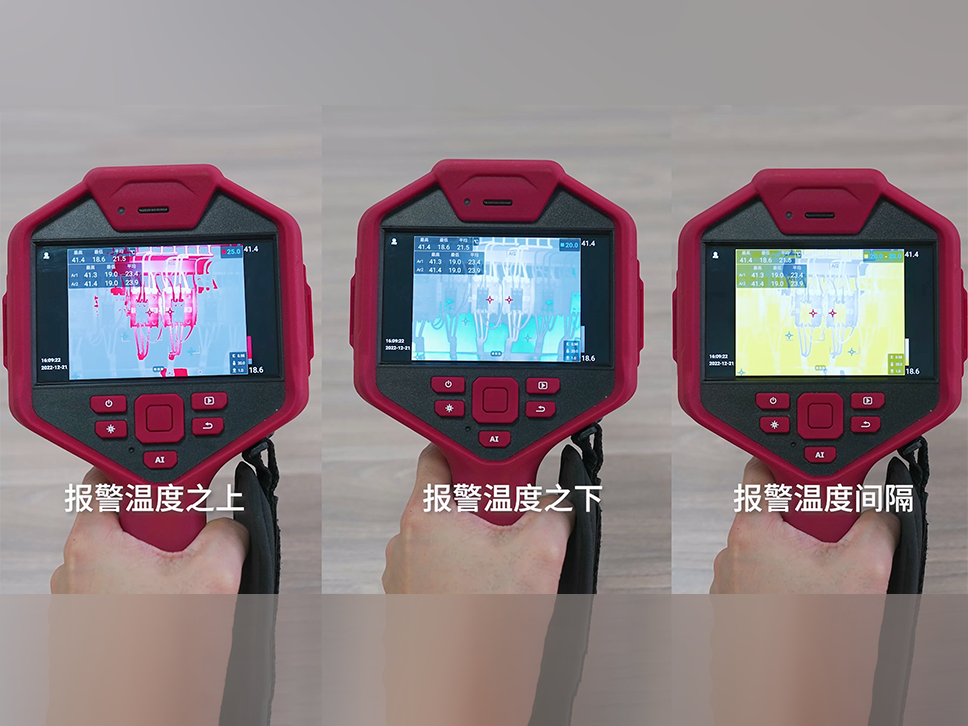

The imager auto-alarms when temperature exceeds set limits, so you spot problems immediately |

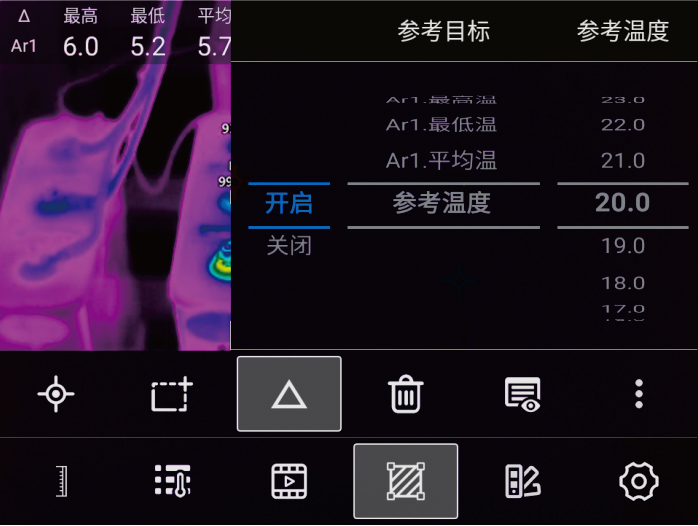

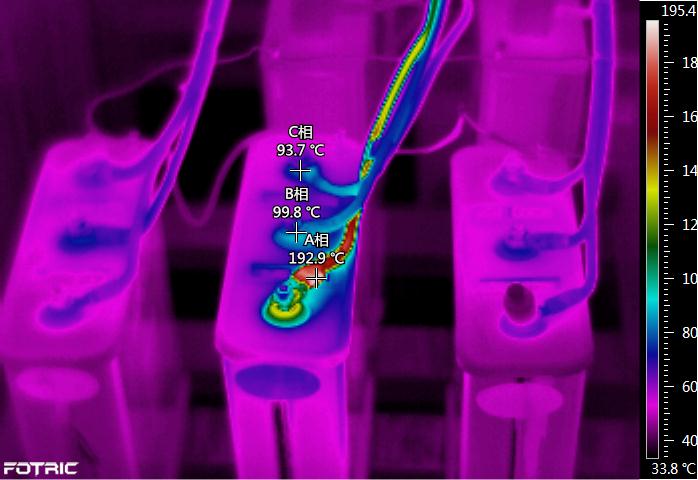

Set ambient temperature as the reference to shield environmental interference and auto-calculate equipment temperature rise, plus automatic inter-phase temperature difference of electrical equipment |
Special Features | |
|
|

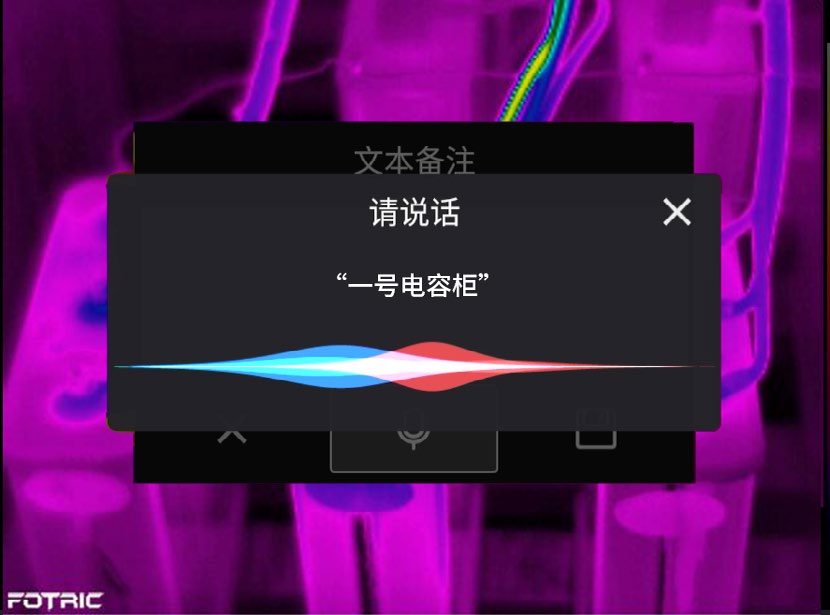

Four AI functions: voice control, voice dictation, text recognition, and smart keys — convenient tools for auto-naming images and quickly adding text annotations on site |

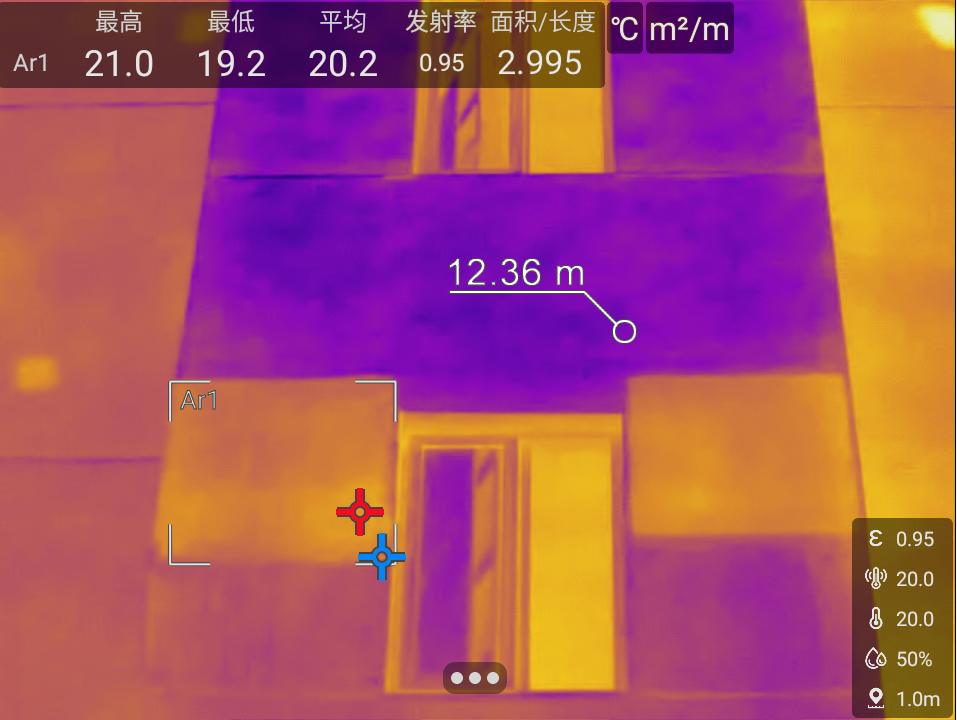

Auto-measures detection distance (up to 50 m), auto-calculates area and length of specific targets on thermal images, and syncs data to the image |
|
|

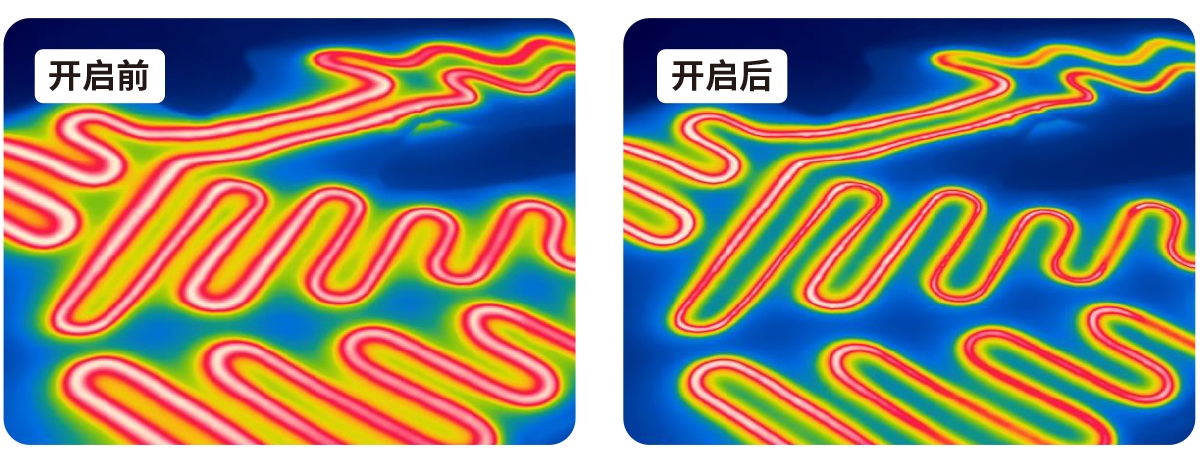

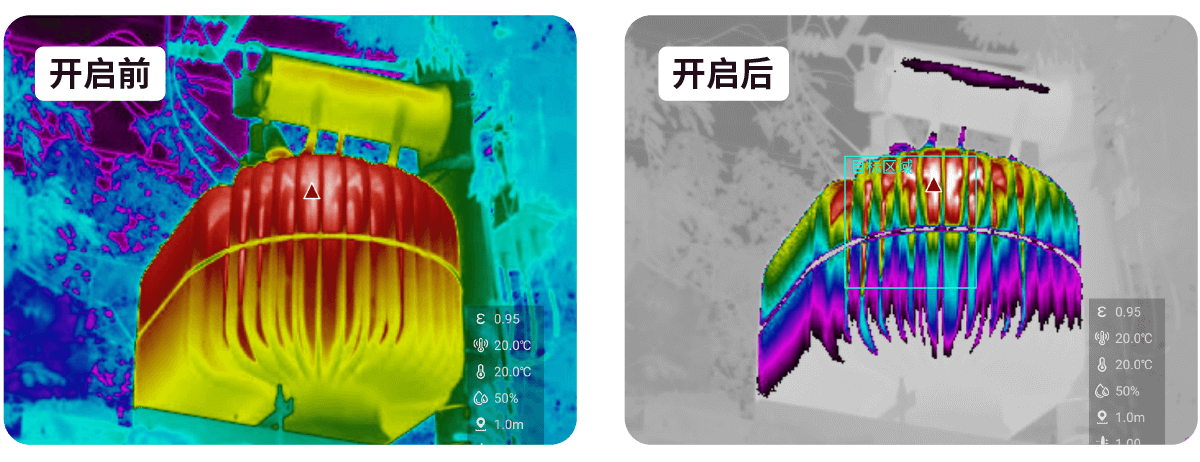

Greatly enhances fine-detail thermal contrast of specific targets in complex scenes while reducing interference from non-targets |

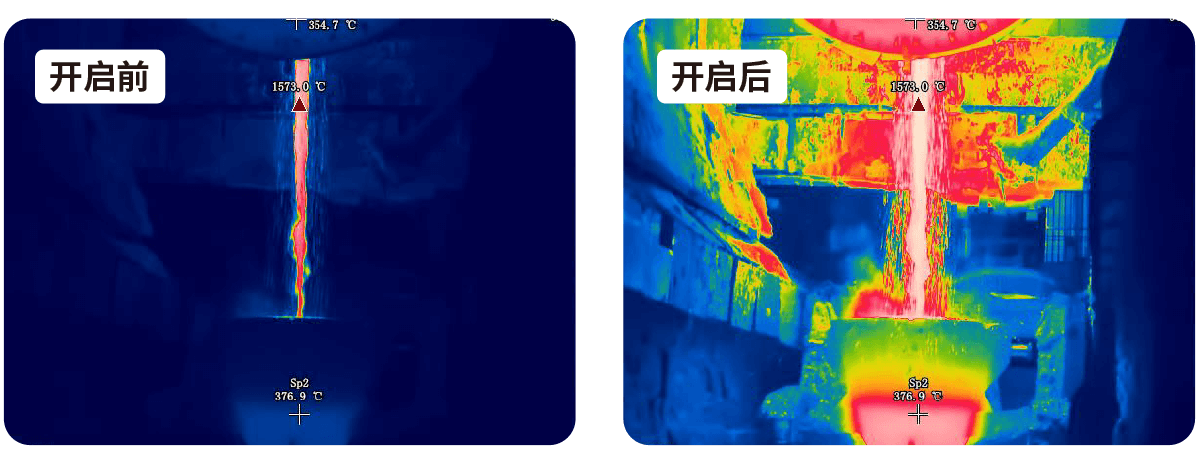

Effectively shields high-heat-source interference, clearly showing thermal gradient changes and avoiding blackout-style displays |
|  |
Optimizes color pixel distribution to sharpen image line definition for clearer contours |
Easily control the imager remotely via phone or PC — ideal for test scenarios where personnel cannot enter |
Rugged Hardware
| Feature | Description |
|---|---|
| 5" Large Display | IPS LCD touchscreen with Gorilla explosion-proof cover |
| 32 GB Storage | Standard 32 GB storage card, expandable up to 2 TB |
| 2 m Drop Rated | Built to survive accidents, stable even on industrial sites |
| IP54 Protection | Dust and water resistant for all-weather operation |
| 8-Hour Battery Life | ≥4 hours per battery; 2 batteries included |
| Dual Power Options | Desktop charger or DC 12 V direct charge |
| OTA Upgrade | OTA remote upgrade and USB drive local upgrade for faster software iteration |
| Data Transfer | USB Type-C, WiFi, HDMI, Bluetooth, cellular network, TF card, and FTP fast transfer |

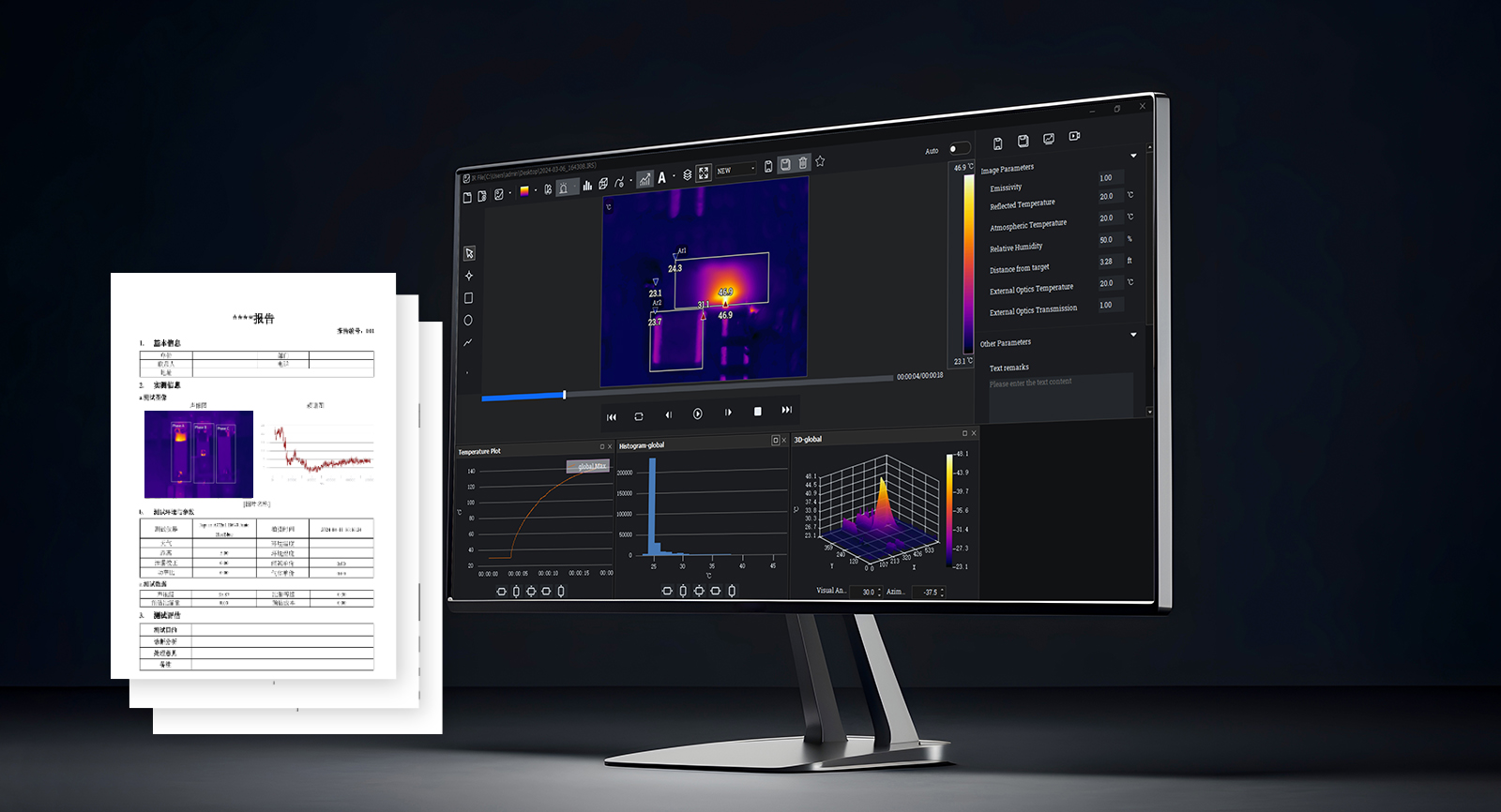

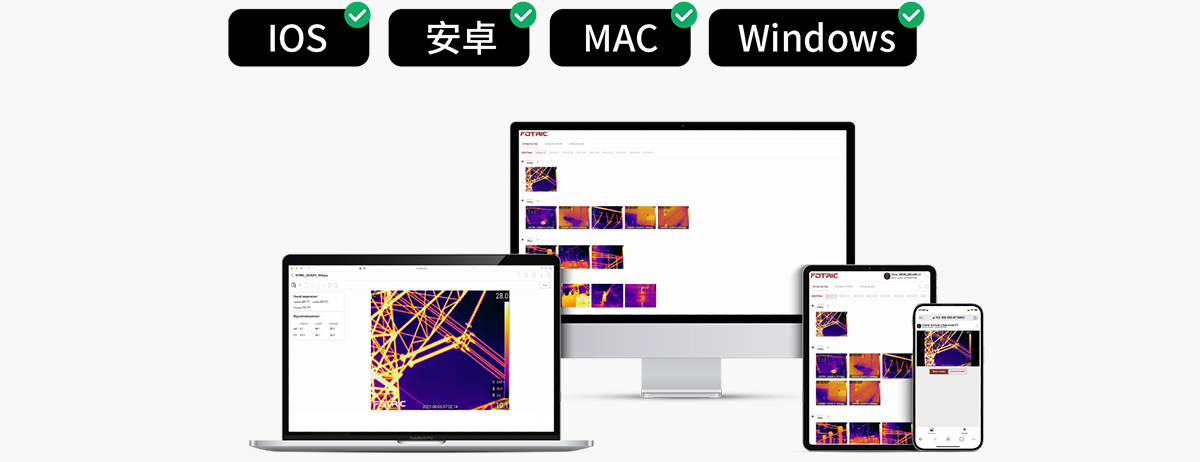

Professional Analysis Software
FOTRIC provides the free AnalyzIR professional thermal analysis software. Features such as temperature-time curves, temperature matrix, and frame-by-frame analysis enable multi-dimensional analysis of thermal images and temperature videos. It also supports one-click generation of professional analysis reports — making reporting easy and work more efficient.
