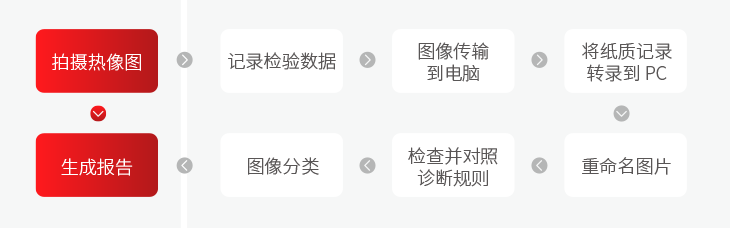

Cloud thermal imaging inspection for smart patrol.

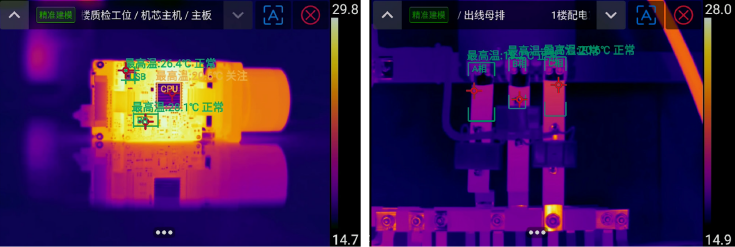

AI-Driven “Smart Locate”

Powered by visual AI technology, Smart Locate rapidly locks onto inspection points — elevating device management granularity from an entire area down to a single inspection point. Set individual alarm thresholds for each point; during patrol, Smart Locate automatically diagnoses and alarms with precision and speed.

Cutting-Edge Hardware

Lynred Pico Gen II+ Detector

More accurate measurement, clearer images, and lower power consumption. First in its class to achieve a –20°C to 650°C temperature range.

8 MP Visible-Light Camera

Industrial-grade CCD camera delivers HD visible-light comparison images even in harsh industrial environments.

Qualcomm Snapdragon Chip

High-performance chip from Qualcomm (USA) for lower power and smoother operation; a Xilinx FPGA chip lays a solid hardware foundation for HawkAI.

–20°C to 650°C

 First in its class to reach this range

±2°C or ±2%

 Full-range accuracy of ±2°C or ±2%

–20°C to 50°C

Operates precisely even in harsh ambient temperatures

±1°C

Full-screen measurement consistency of ±1°C

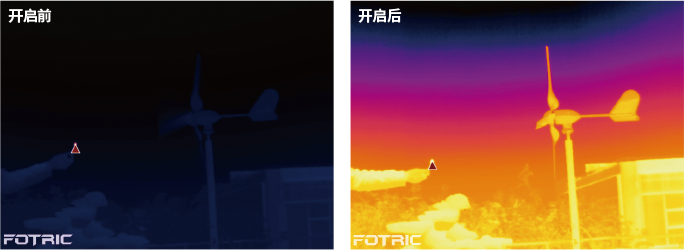

TWB High-Temperature-Difference Balanced Imaging — FOTRIC proprietary technology that clearly displays the thermal gradient of all targets in high-temperature-difference scenes — no temperature-span adjustment needed even in extreme environments.

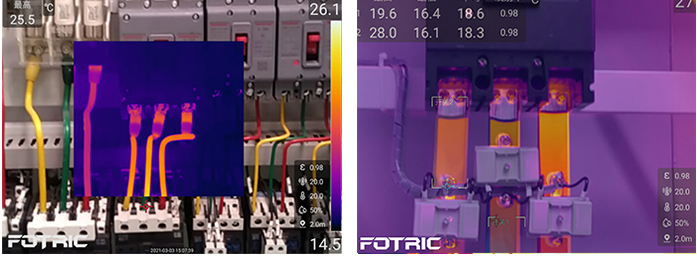

Four Image Modes

Thermal, visible light, picture-in-picture, and T-DEF® help users quickly locate faults.

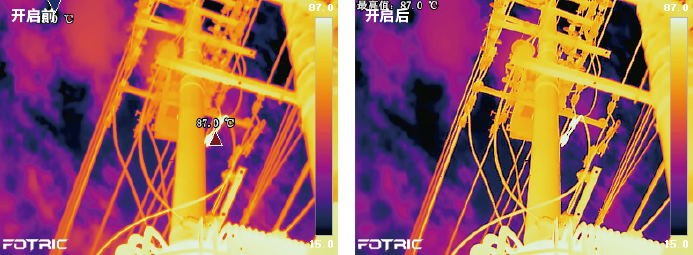

IREdge™ Image Enhancement

FOTRIC proprietary technology that significantly enhances detail rendering of targets in complex scenes.

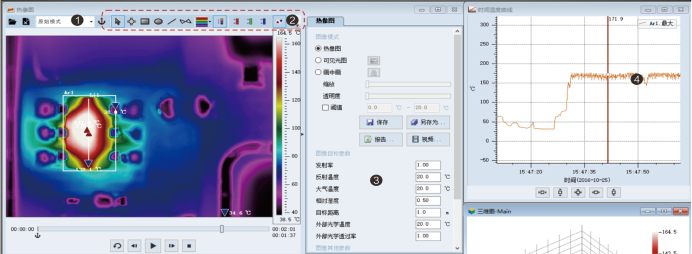

Proprietary Professional Analysis Software

 FOTRIC AnalyzIR analyzes tests from three dimensions — image, temperature, and time — for more accurate secondary analysis.

Powerful On-Device Analysis

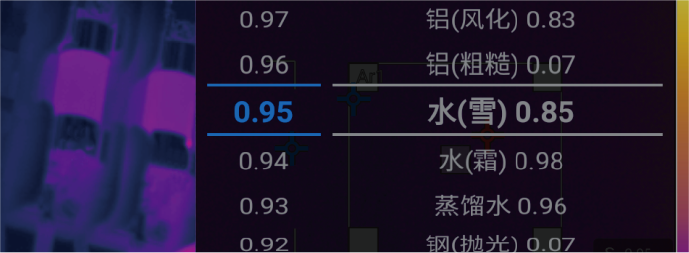

 Up to 12 points, 6 lines, and 12 areas; zone measurement and zone emissivity settings avoid repeated shooting and greatly improve on-site diagnostic efficiency.

Shoot on Power-On

 The FOTRIC 310 Series uses a focus-free design with a minimum focus distance of only 1 m; with auto temperature span, you can capture thermal images immediately on startup.

Human-Machine Interaction

Built from deep user research and understanding of usage habits, with a simplified UI that lets users start inspection without a manual and explore the thermal world.

Global Auto-Marking

Dynamically displays global max and min temperatures in real time; spot defect/fault points at a glance, usable without professional training.

49° Wide FOV

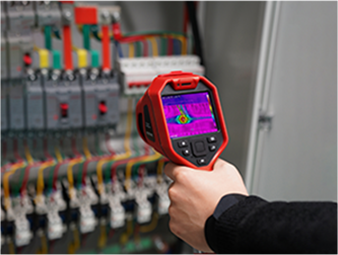

Easily measure in confined environments; the wide FOV increases coverage area — at 1 m you can inspect an entire switchgear panel, boosting large-area efficiency.

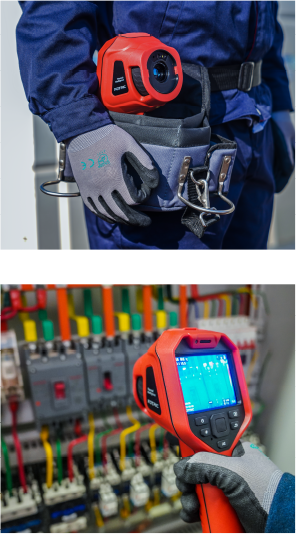

243 × 95 × 142 mm

Compact form, easily fits in toolboxes and bags

730 g

Only 730 g with battery, comparable to an iPad Pro

2 m Drop Rated

 Compact yet built to withstand drops

WiFi-FTP

 Supports Type-C, WiFi, HDMI, Bluetooth, cellular network, and TF card; WiFi-FTP transfer
