The Mini acoustic camera has single-source, multi-source, and holographic image modes, and you can switch to the right mode depending on how complex the noise is or what you’re trying to detect.

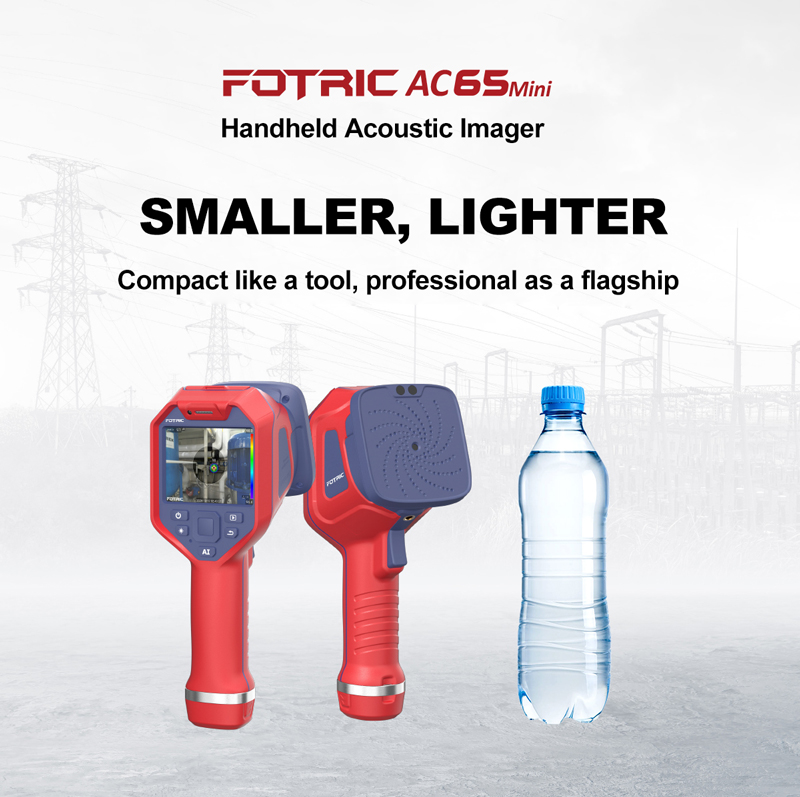

A lightweight package for efficient travel

In the past: double box burden

Due to weight and volume limitations, the ultrasonic instrument has to be packed and carried separately.

Now: One package integration

The Mini sonographer can be directly placed in the tool kit without taking up space.

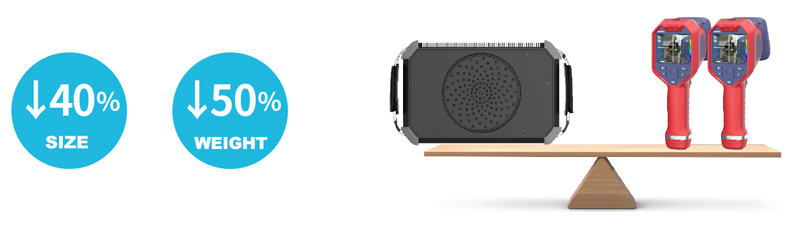

Comparative data: The transformation from two boxes to one box

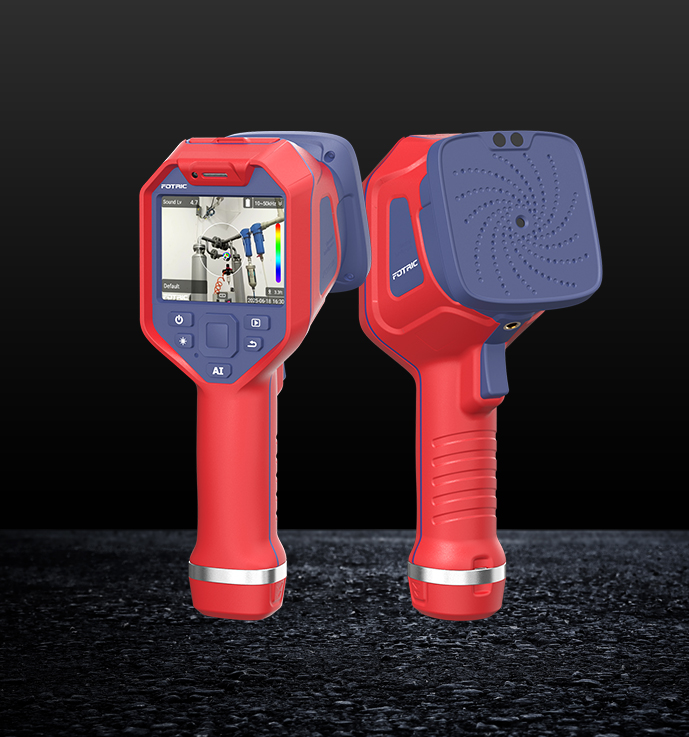

Professional audio-visual detection equipment Multi source imaging, intelligent acquisition, one click reporting

High density microphone array with 112 MEMS digital microphones distributed

Industrial digital camera: 13 million pixels, field of view angle 66 °× 52 °

Single battery usage time ≥ 4 hours, detachable. IP54 protection level of the whole machine

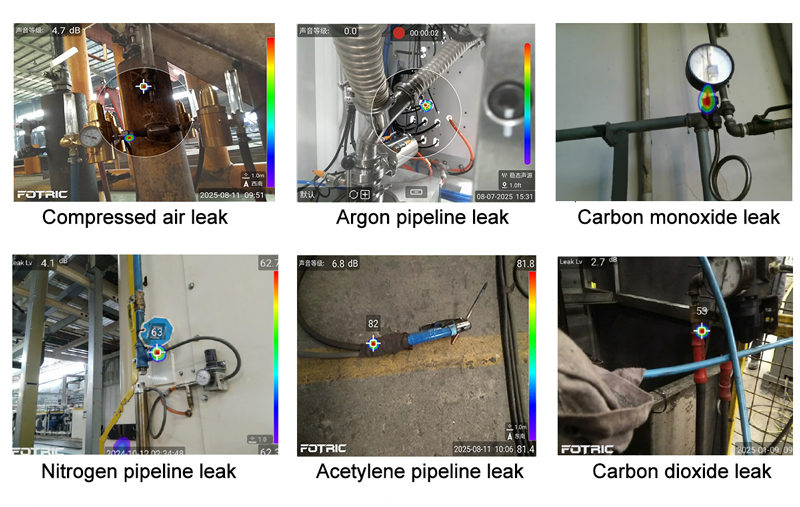

Single sound source, multiple sound sources, holographic multiple image modes

Multiple acquisition modes including holographic imaging, holographic audio-visual video recording, and timed shooting

Professional functions such as sound pressure level measurement, sound image delay, and sound image focusing

Generate reports in Word or PDF format directly on this machine

Acoustic detection · AI empowerment

Featured Features · Smart Inspection

Audio Visual Delay (T-FFTD) ®)

Based on a multi-mode transient voiceprint capture matrix, microsecond level acoustic events can be adaptively enhanced in holographic sound fields through signal residency.

Sound and image focusing

Combining adaptive dynamic noise reduction algorithm to achieve sound source focusing and localization in the target area of holographic sound field.

Quickly generate local reports

The audio-visual equipment directly generates Word or PDF format reports, which can be previewed in the gallery.

Image mode

The Mini sound instrument has multiple image modes including single sound source, multiple sound sources, and holography. It can switch to the appropriate mode according to the complexity of on-site noise and the detection target.

Shooting function

Mini sound instrument has multiple acquisition modes such as holographic sound image shooting, holographic sound image video recording, and timed shooting.

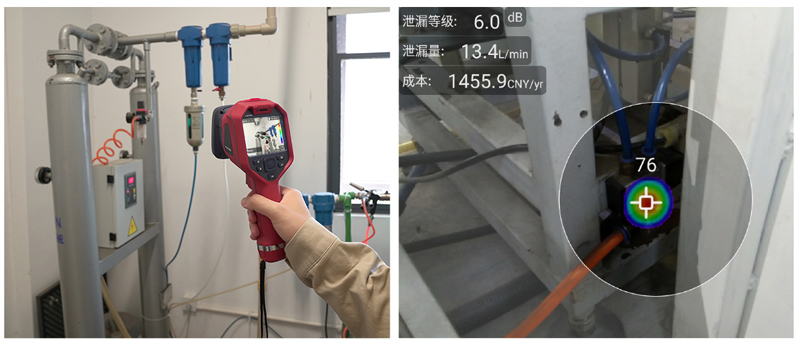

Sound pressure level measurement

Combining acoustic images with dB data output, suitable for various industrial sound source localization and diagnostic tasks. Improve the intuitiveness, efficiency, and safety of acoustic detection.
