Technical parameters
Basic Parameters
| Specification | Value |
|---|
| Microphone Channels | 64 MEMS digital microphones |
| Acoustic Image FOV | 58° × 45° |
| Sound Sampling Rate | 130 kHz |
| Acoustic Refresh Rate | 20 Hz |
| Operating Distance | 0.3–100 m |
| Localization Frequency Range | 2 kHz–65 kHz |

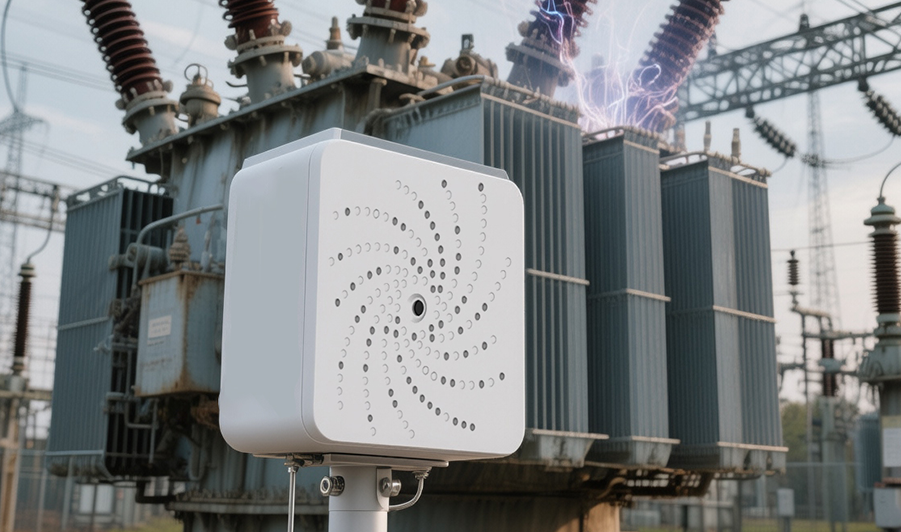

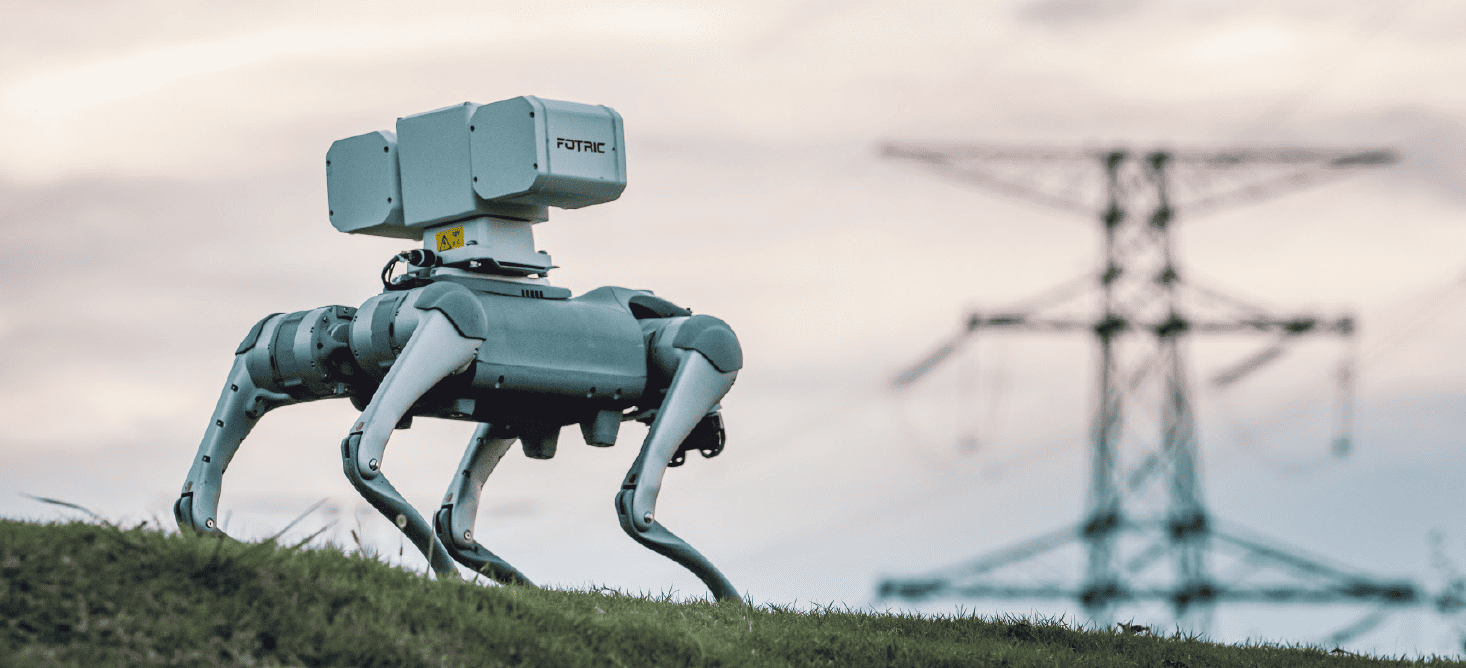

| Detection Modes | Leakage mode: displays leak level on device; PD mode: displays PRPD spectrum, adapts to different AC frequencies (50/60 Hz) |

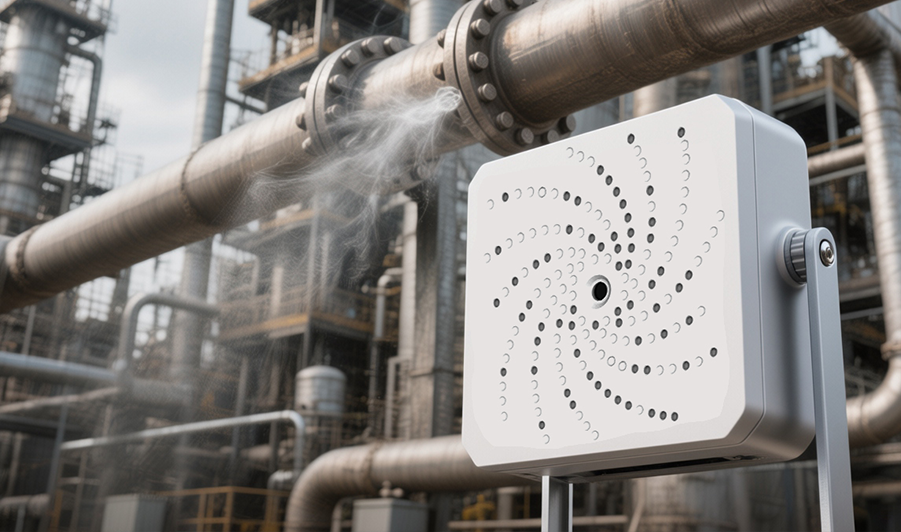

| Leakage Assessment | Auto-identifies leak points; auto-evaluates leak volume and annual energy cost |
| Holographic Acoustic Stream | Real-time holographic sound grid data plus corresponding visible-light image, power spectrum, PRPD spectrum, and leakage assessment results |
| Acoustic Image Delay (T-FFTD) | Captures instantaneous sound signals, keeping them visible longer in the live acoustic image |
Network Connectivity
| Specification | Value |
|---|
| Ethernet Type | 10M/100M/1000M auto-negotiation |
| Network Protocols | IPv4, HTTP, UPnP, NTP, UDP, TCP, RTSP, RTCP, RTP, DHCP, WebRTC |
| Access Standard | ONVIF |
Power System
| Specification | Value |
|---|
| Power Supply | 12 V / 24 V DC, PoE |
| Typical Power Consumption | <5.5 W |
Reliability & Certification
| Specification | Value |
|---|
| EMC | GB/T 18268.1 / EN IEC 61326-1 |
| Ingress Protection | IP65 (GB/T 4208 / IEC 60529) |
| Shock Resistance | 25 g (GB/T 2423.5 / IEC 60068-2-27) |
| Vibration Resistance | 2 g (GB/T 2423.10 / IEC 60068-2-6) |
| RoHS Directive | Compliant |
Physical
| Specification | Value |
|---|

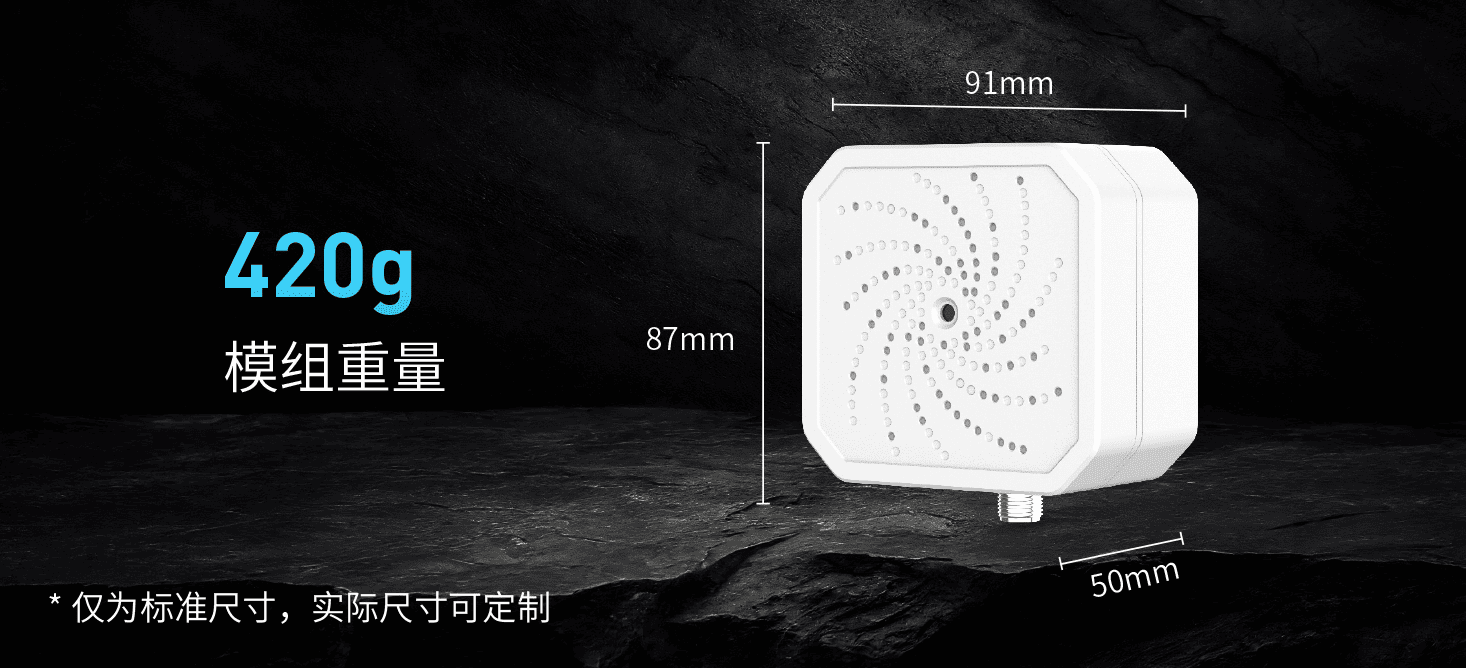

| Dimensions | 91 × 50 × 87 mm |
| Weight | 420 g |
| Housing Material | Aluminum alloy |
| Mounting | 2 × 1/4-UNC-20 tripod mount holes; back mounting supported |
| Languages | Simplified Chinese, English |
