Main Chip

 Korean Samsung Quad-Core Chip

Detector

French Lynred Infrared Detector

FPGA

American Xilinx Programmable Logic Device

Power Chip

American Texas Instruments Chip

Infrared windows are affected by changing ambient temperatures, which impacts the thermal camera’s measurement accuracy — and this cannot be avoided even by adjusting transmittance. Integrated temperature calibration ensures that the enclosure-imager measurement stays within accuracy at any ambient temperature.

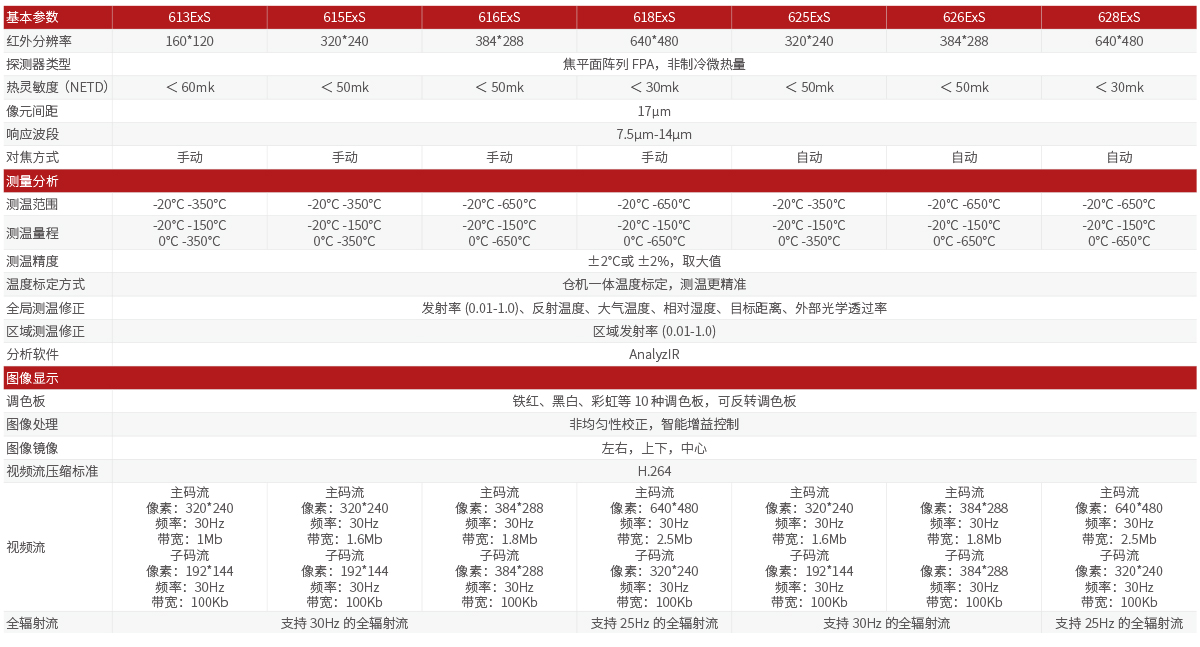

Full-Range Accuracy

±2°C or ±2%

Precise Measurement Range

 –20°C to 2000°C

Harsh Environment Accuracy

 –30°C to 60°C

Max Ingress Protection

 IP67

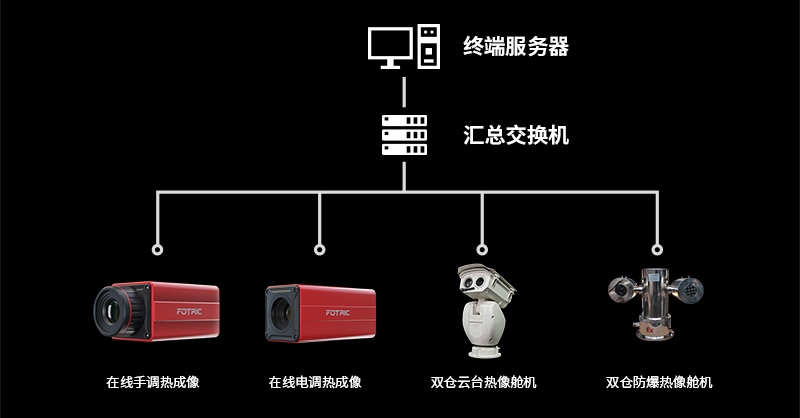

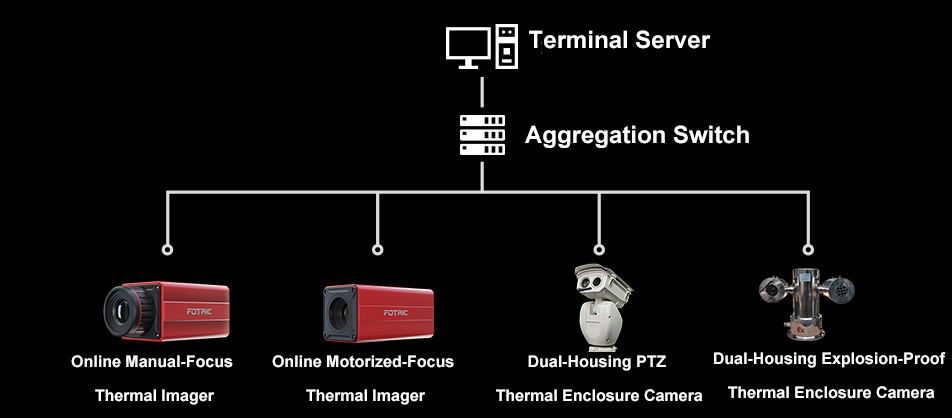

The MoniTiR integrated monitoring system combines resource management, device management, device monitoring, and alarm management functions.

Resource Management — Adds, edits, deletes, and configures monitoring points, zones, and services — the foundation for stable system operation.

Device Management — Adds, edits, and deletes user device records; completes association with monitoring points — the key to system configuration.

Device Monitoring — Displays dynamic data, dynamic defect charts, dynamic curves, and live video of monitored equipment — the human-machine interaction window.

Alarm Management — Includes alarm output configuration, preview, and display — the alarm core of the system:

Multiple alarm output methods: audible/visual, email, WeChat, SMS, and phone call

Confirm in real time whether a monitoring point has an alarm signal while viewing live video

Display alarm data, images, live video, and video playback

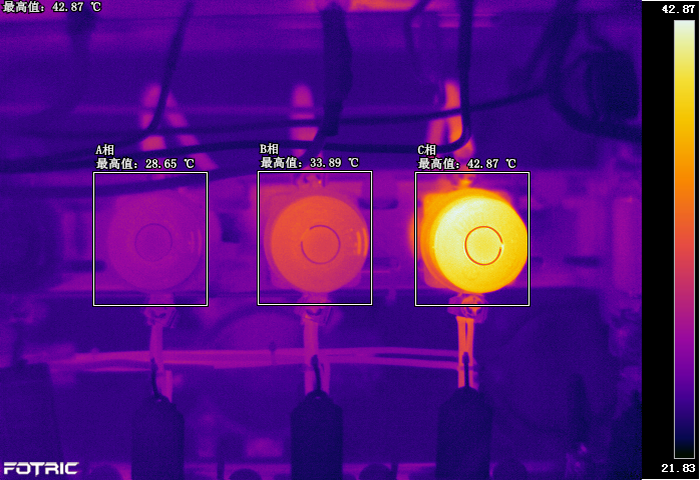

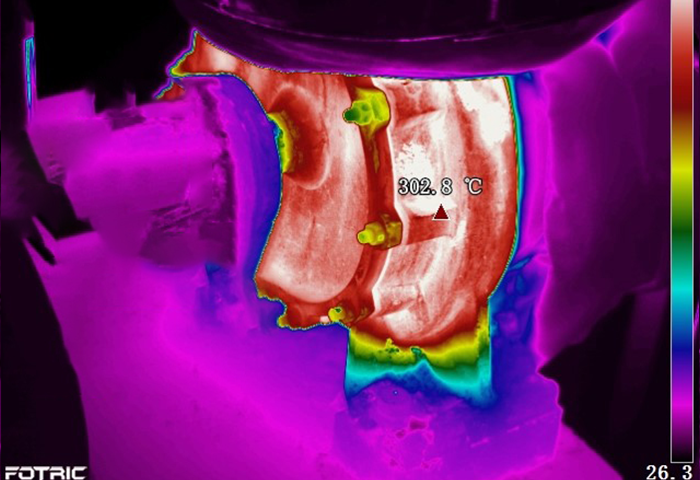

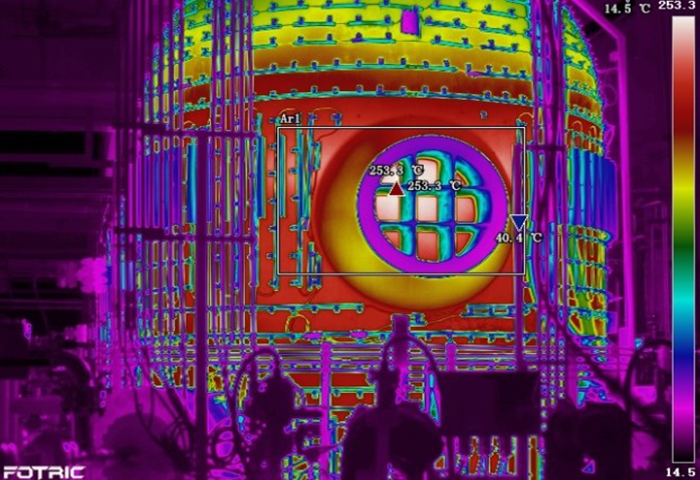

Collects temperature data from hundreds of thousands of points simultaneously, continuously, automatically, and non-contactly. Supports full radiometric thermal video stream output, providing base data for temperature-based condition monitoring and analysis.
