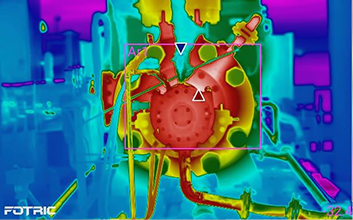

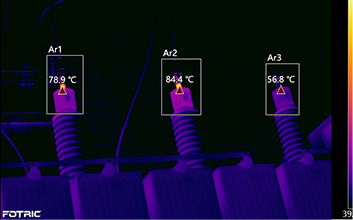

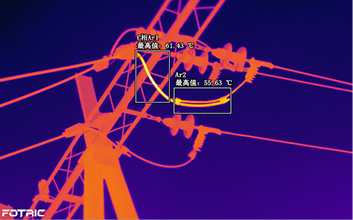

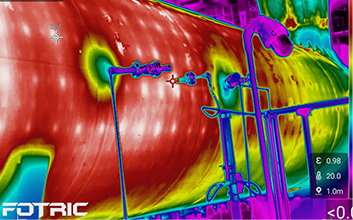

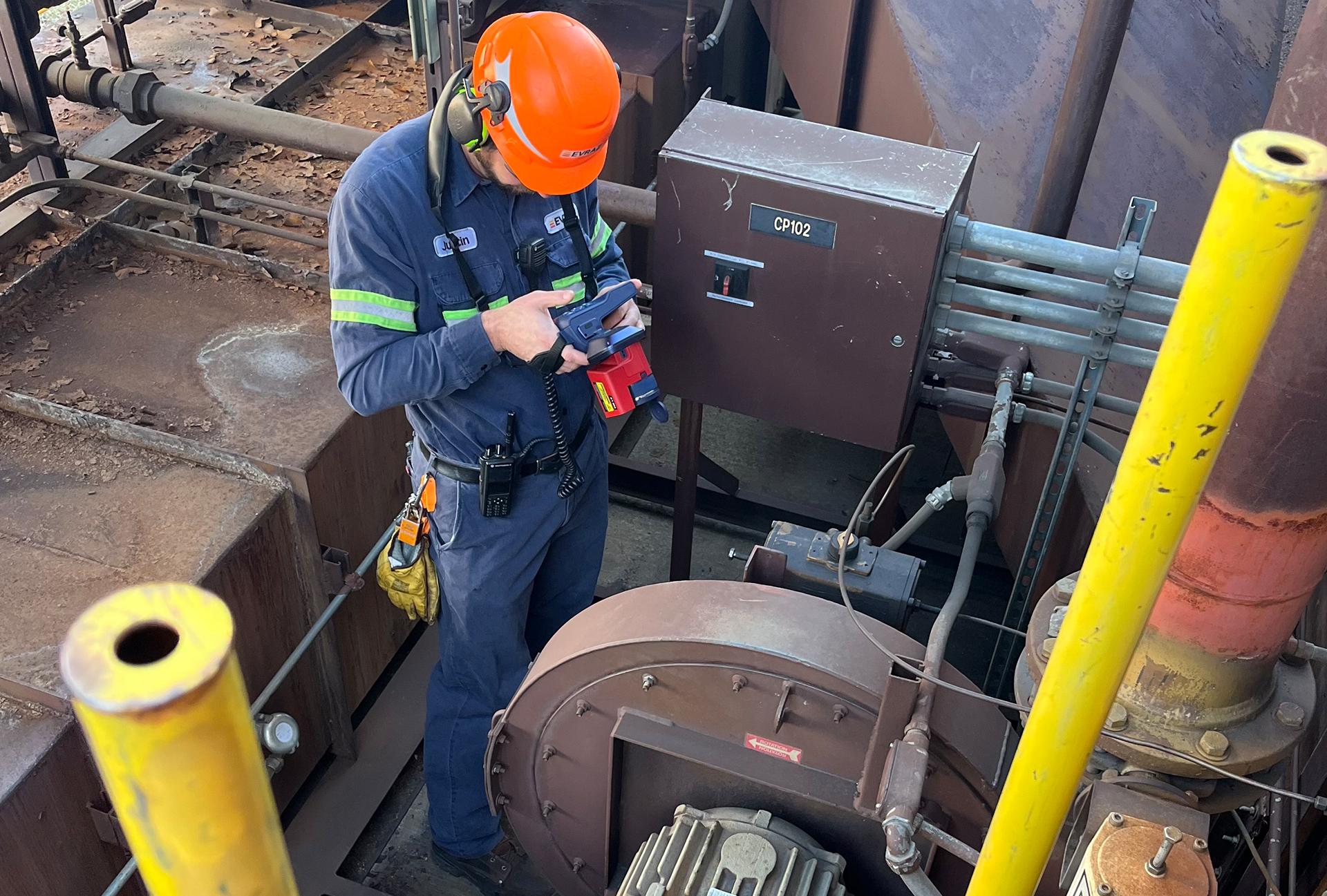

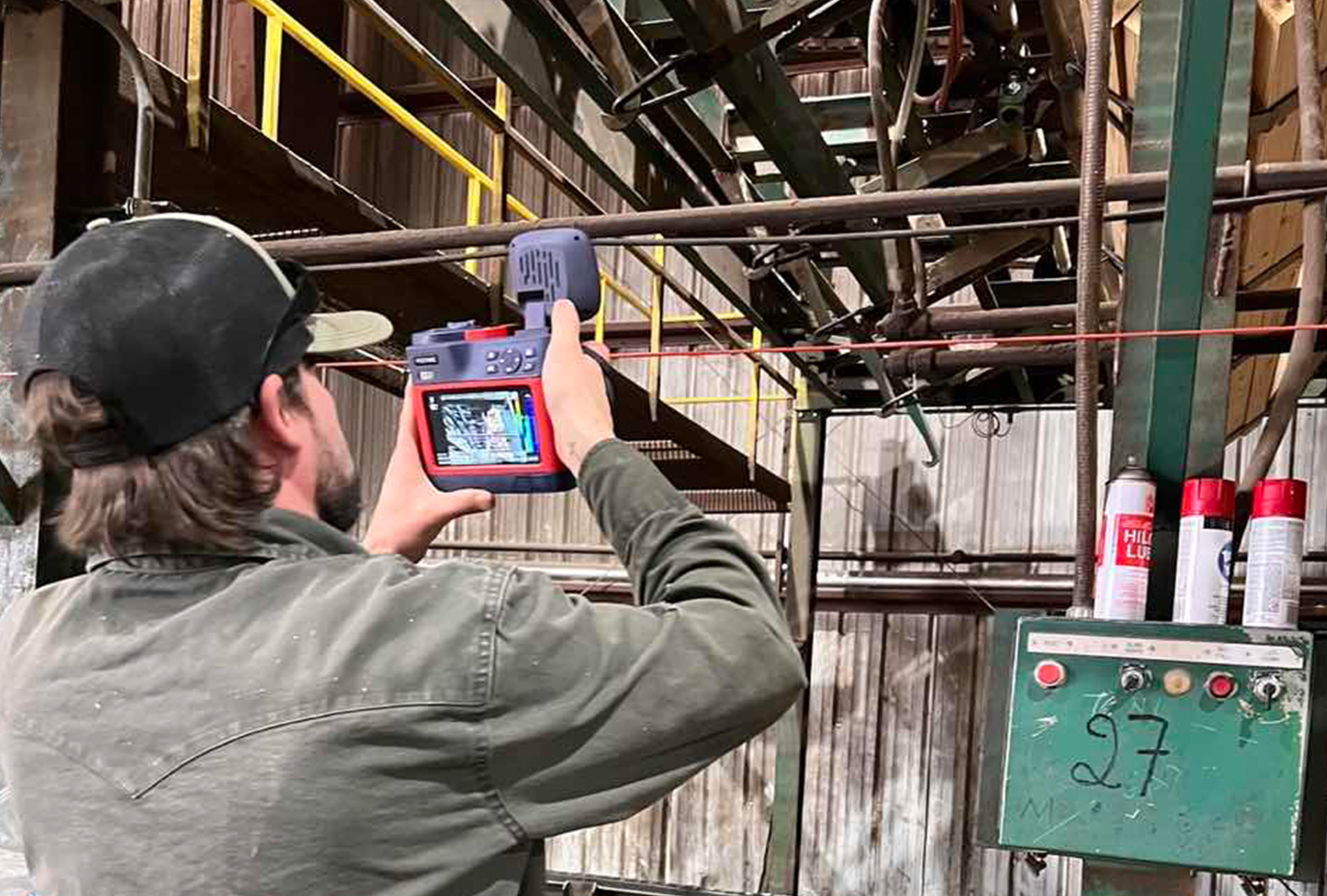

Application Scenarios

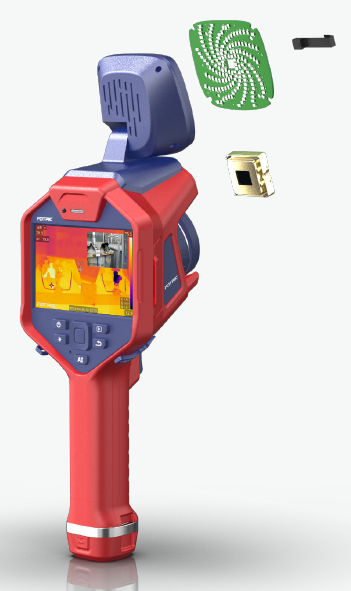

Premium Hardware

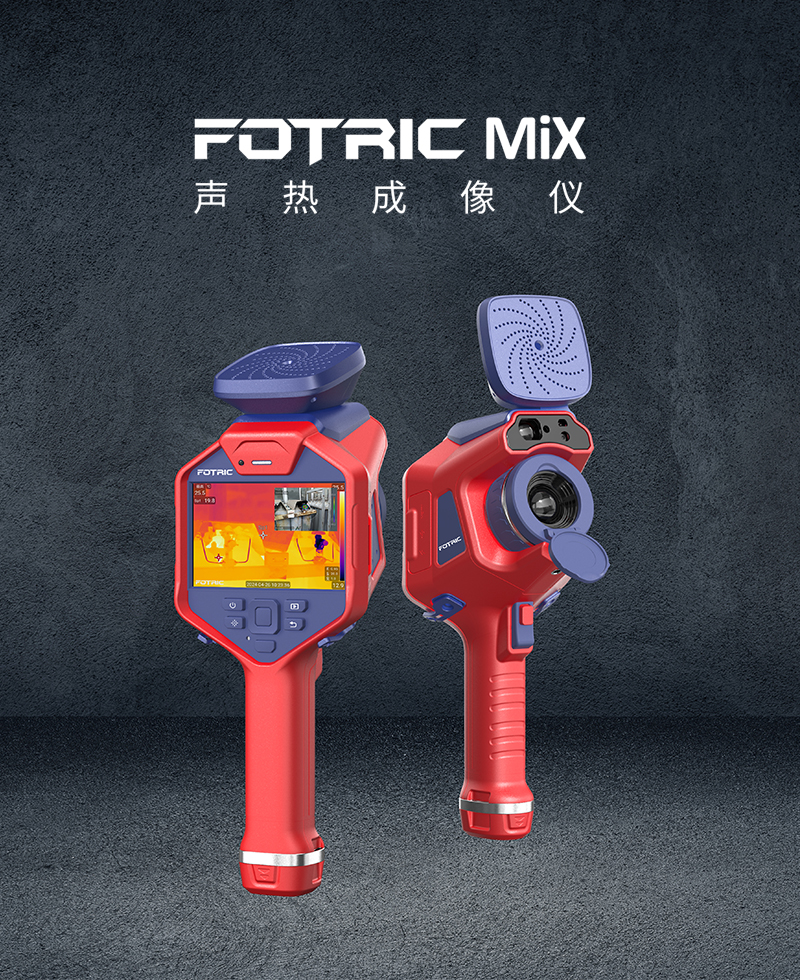

13 MP industrial-grade camera HD, detailed imaging in complex industrial environments Up to 162 digital microphones Ultra-sensitive acoustic detection, richer imaging detail World-class 640×480 detector HD imaging, precise measurement, stable operation 5-inch IPS LCD touchscreen Ultra-clear large screen, withstands physical impact Two-in-one compact design Full Unit Weight< 1.5kg

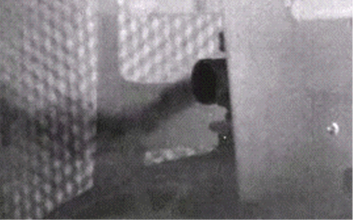

Temperature Measurement & Leak Detection Dual-Purpose Infrared Lens

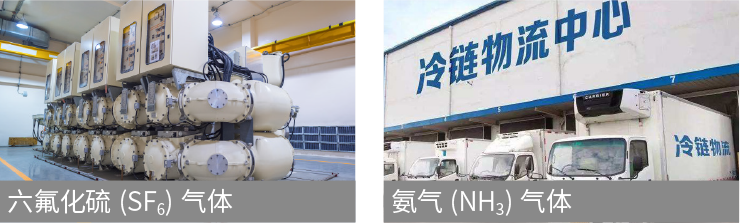

FOV::25°*19° Spectral response:10μm~10.8μm Temperature range:-20~150°C，0~700°C  Other detectable gases: ethylene /vinyl chloride /methyl vinyl ketone /acrylonitrile

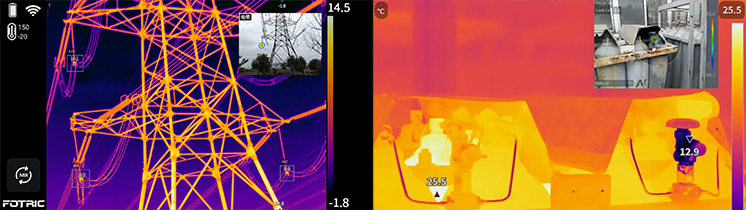

Multi-Dimensional MiX Mode

In MiX mode, the thermal distribution and acoustic signature of the inspected equipment appear simultaneously, extracting fault features from multiple dimensions for comprehensive and accurate hazard analysis — improving inspection efficiency and quality.

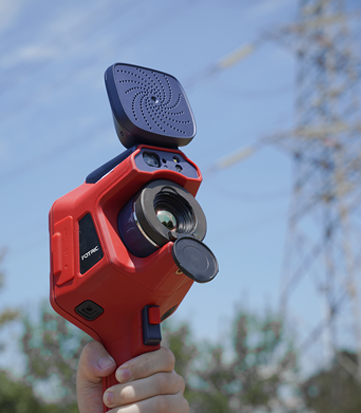

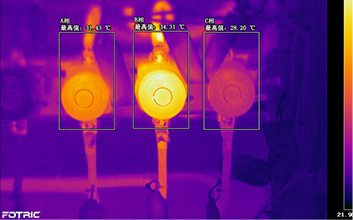

Professional Thermal, Precise Measurement

Delivers precise temperature measurement and image enhancement algorithms, providing clear, high-quality thermal imaging across various environments for reliable inspection data and analysis conclusions.

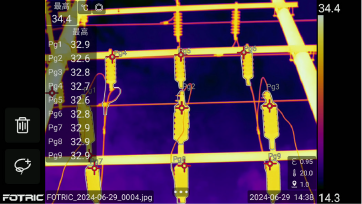

 Magic Wand (MagicThermal®)

AI auto-identifies feature targets, quickly adding irregular measurement tools matched to the target shape.

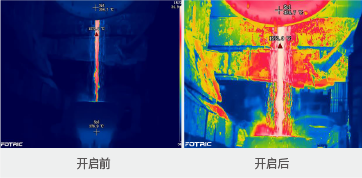

TWB High-Temperature-Difference Balanced Imaging (T-TWB®)

Clearly displays temperature gradients of each inspected device under high temperature differences.

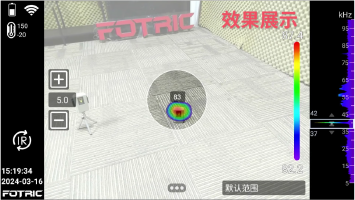

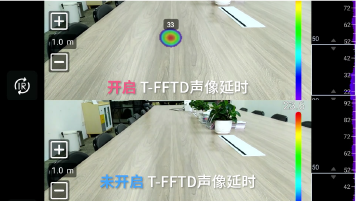

Professional Acoustic, Intelligent Diagnosis

Equipped with gas leak detection and partial discharge diagnosis capabilities, featuring a range of intelligent functions that significantly improve inspection efficiency, ensuring fast and accurate fault diagnosis and maintenance.

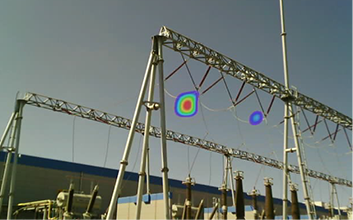

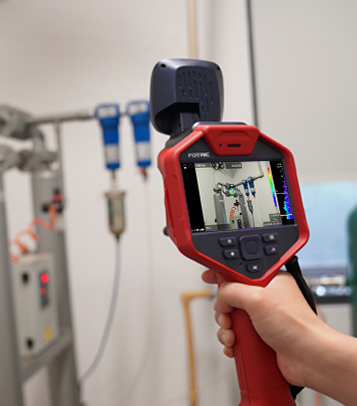

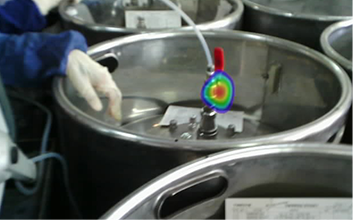

Leak mode / PD mode

Leak assessment, PD diagnosis

Microphone frequency range：2 kHz–100 kHz
