FOTRIC 860MiX-Ex Series
Product Introduction：

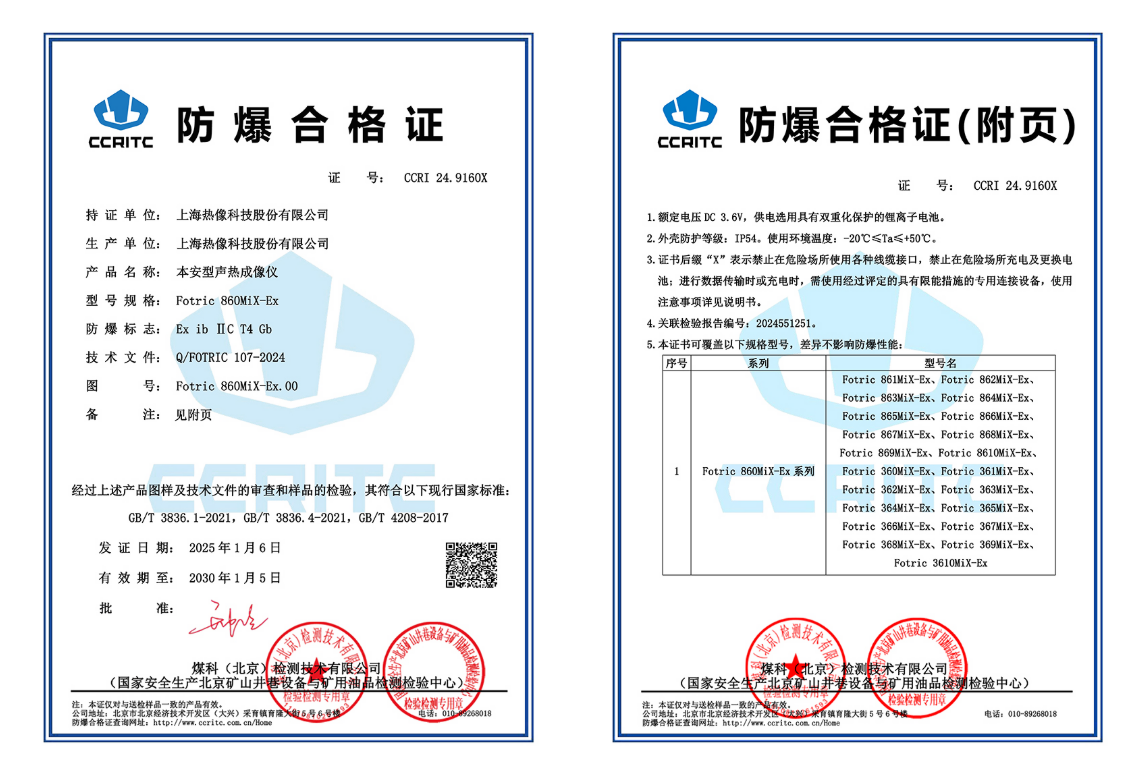

Acoustic thermal imager, explosion-proof rating: Ex ib IIC T4 Gb- Consultation Hotline：18615230752 Landline：0531-88975421
Product Details

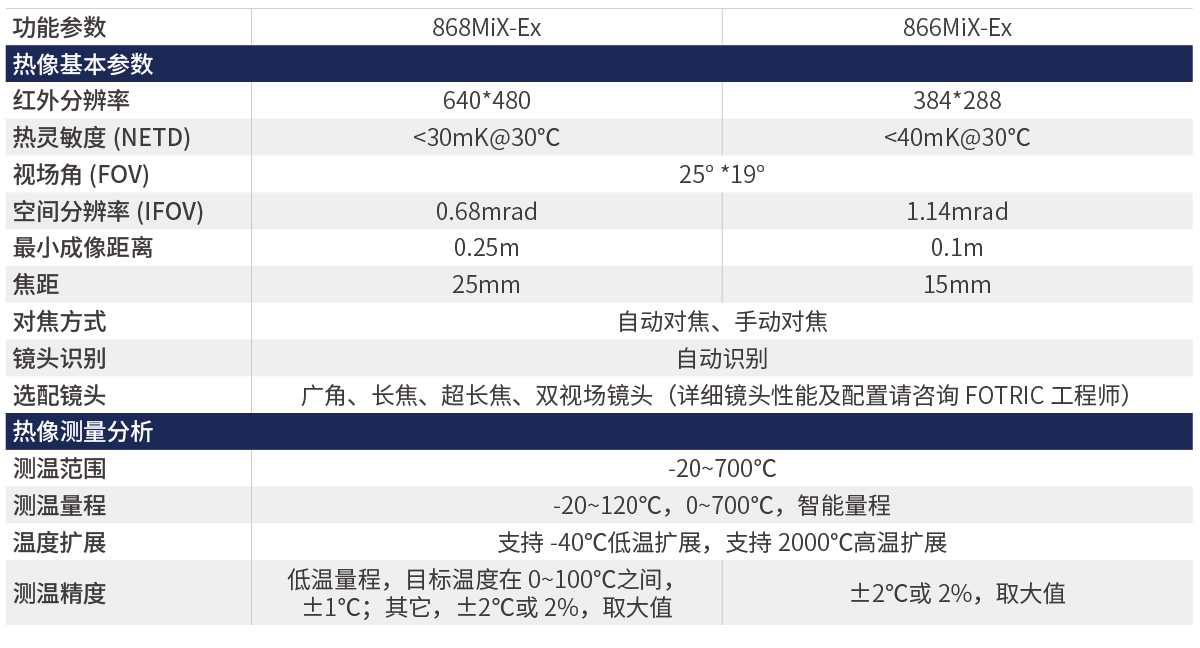

Technical parameters
Application scenarios
Optional accessories
Contact Us
Acoustic-thermal imager, professional infrared imaging + professional acoustic imaging all in one

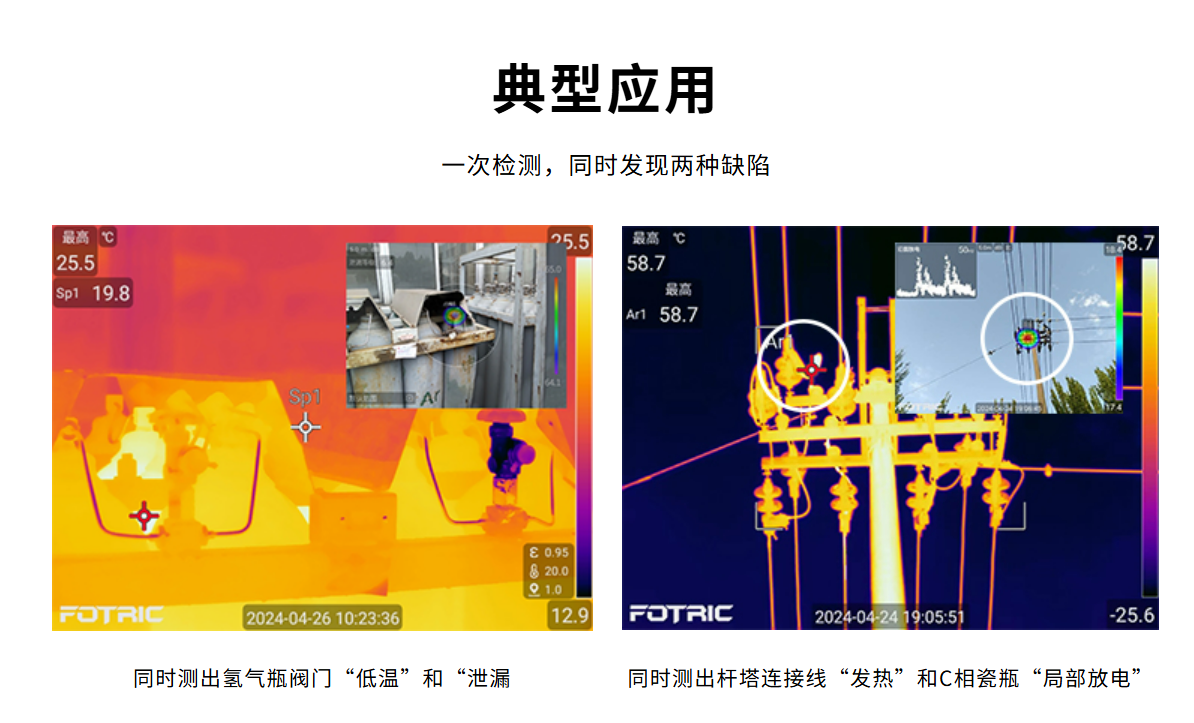

Typical Applications
One Inspection, Two Defects Found Simultaneously

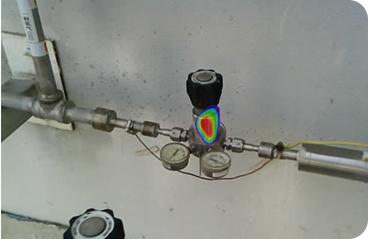

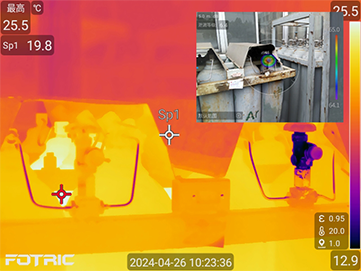

Hydrogen cylinder valve “low temperature” and “leak”

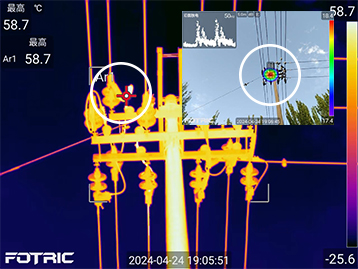

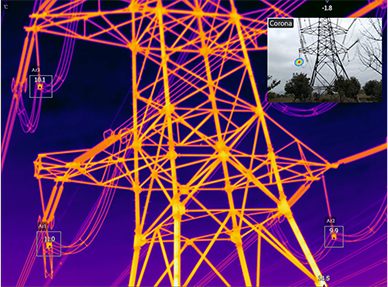

Tower connection “overheating” and C-phase insulator “partial discharge”

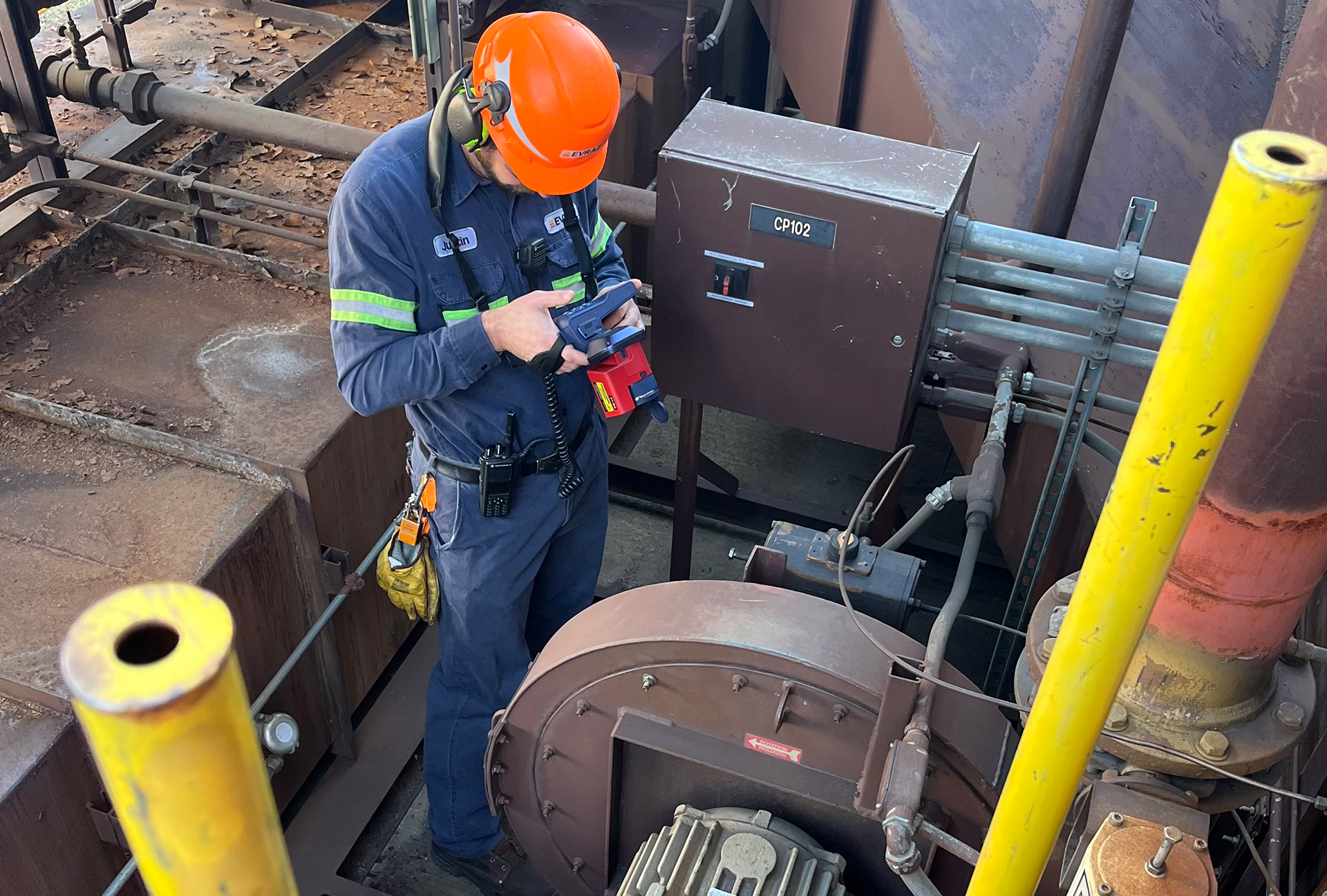

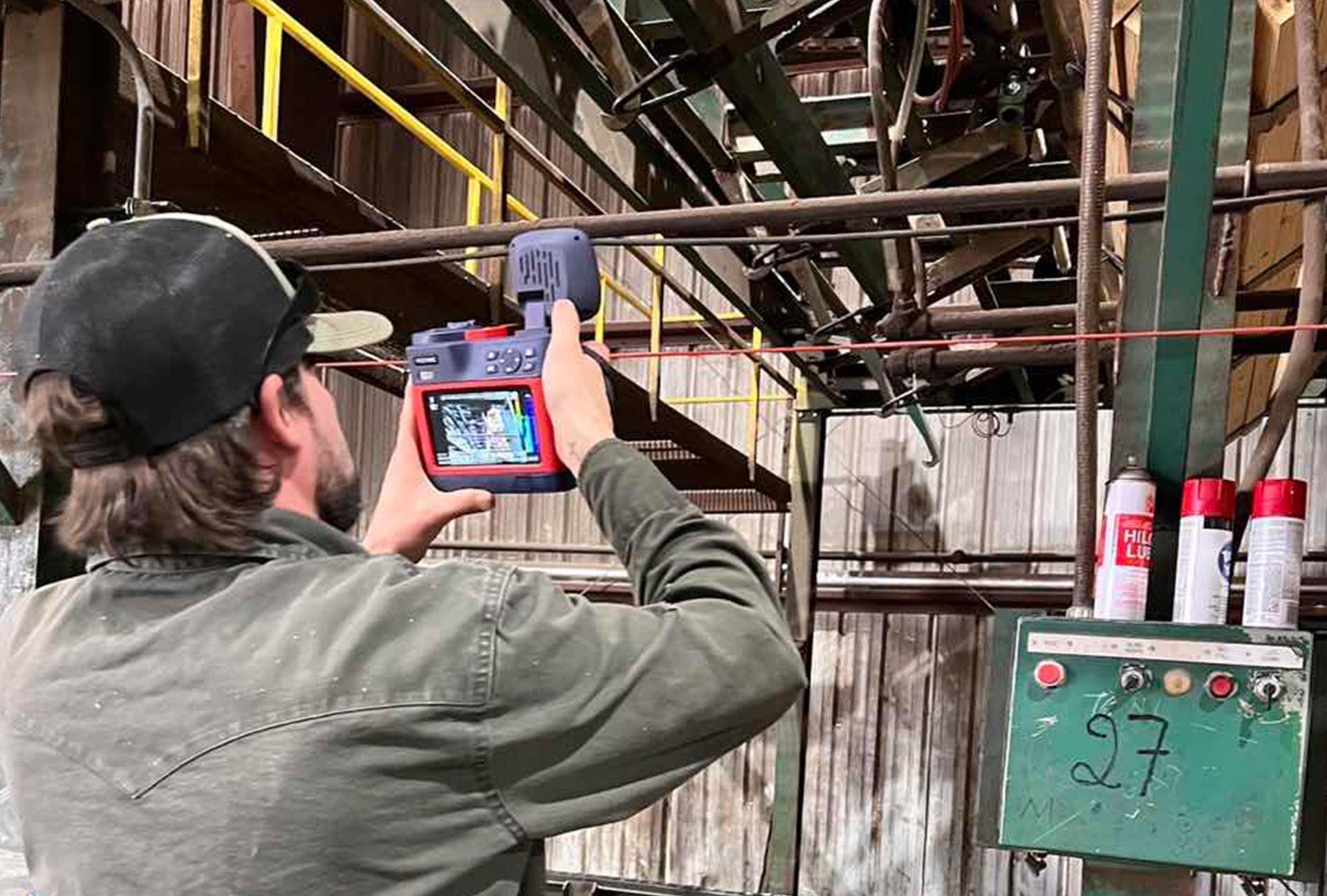

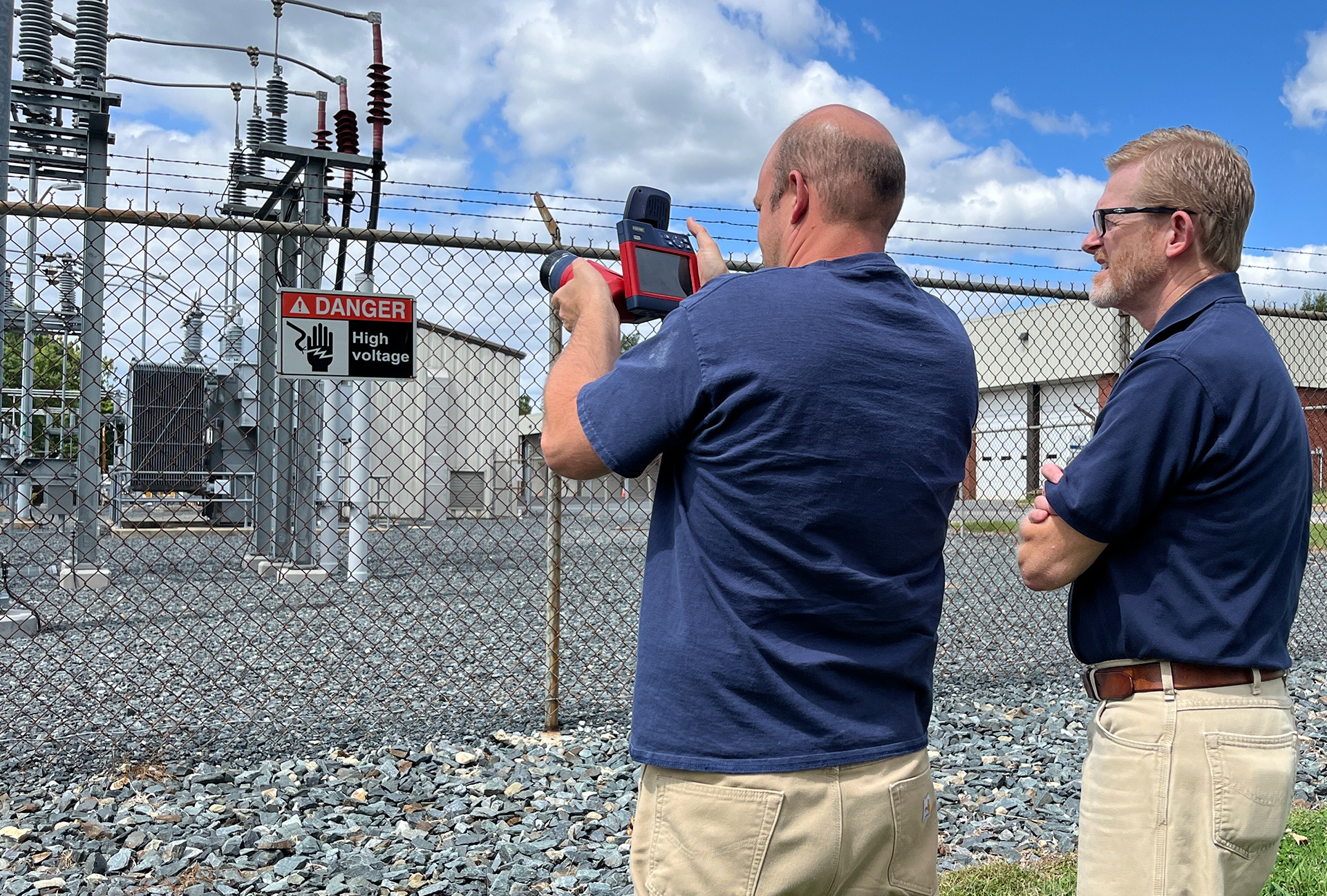

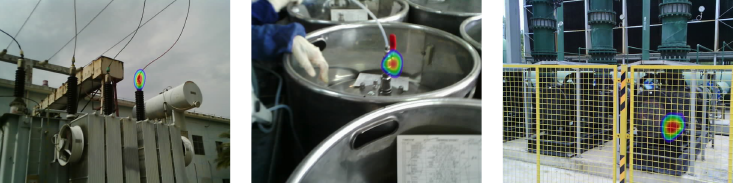

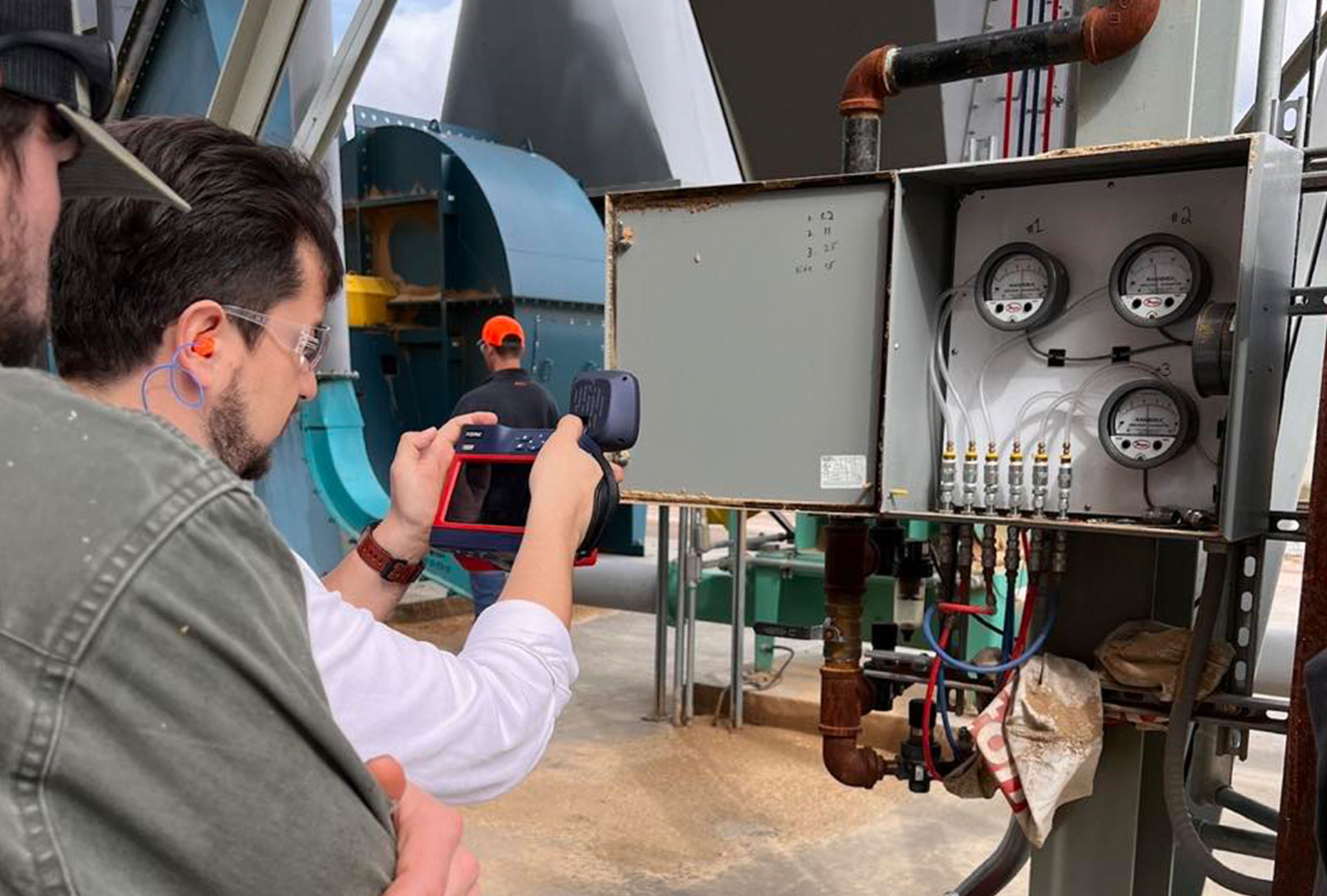

Field Scenarios
Due to the many pieces of equipment to inspect

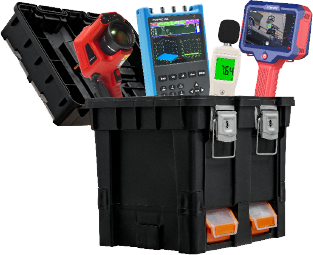

In the past, one inspection trip required carrying…
All equipment that might be needed: Infrared thermal imager、Partial discharge tester、Gas leak detector and more…

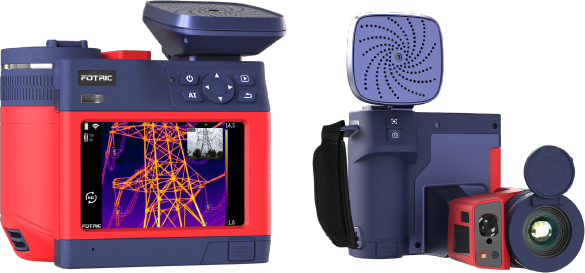

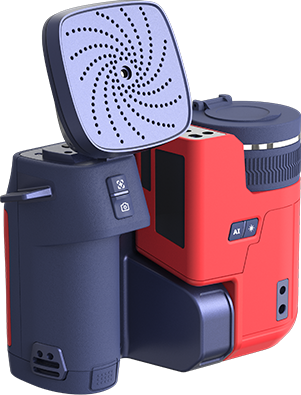

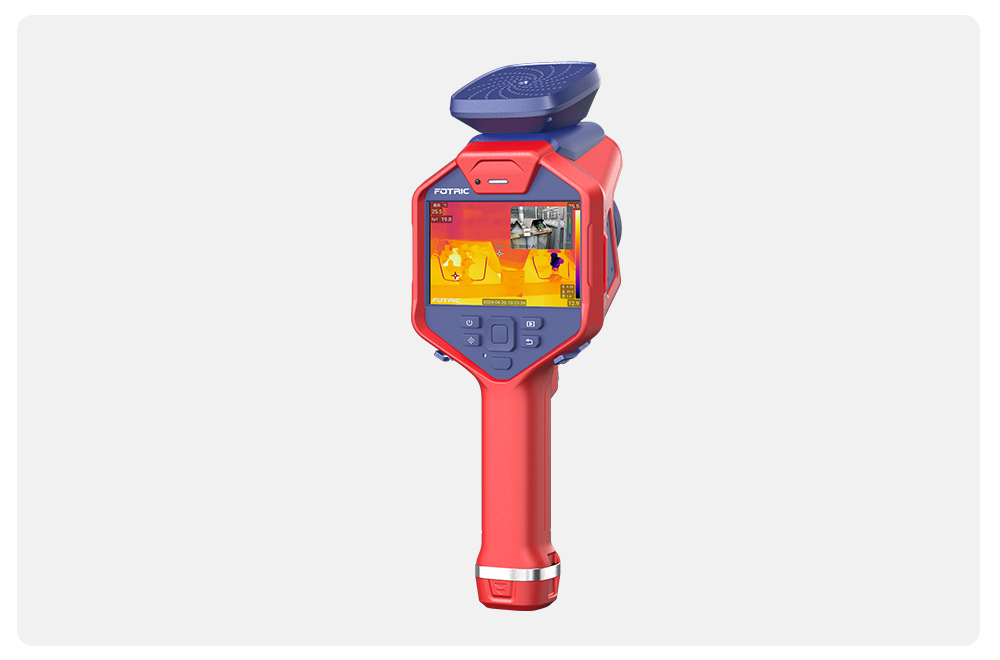

FOTRIC Acoustic Thermal Imager
FOTRIC Acoustic Thermal Imager
What is an “Acoustic Thermal Imager”?
A professional two-in-one product excelling in both thermal and acoustic imaging.
It combines the capabilities of a professional thermal imager and a professional acoustic imager — delivering precise temperature measurement and HD imaging, while also performing fast and accurate leak assessment and partial discharge diagnosis.
Four Reasons
To Choose FOTRIC Acoustic Thermal Imager

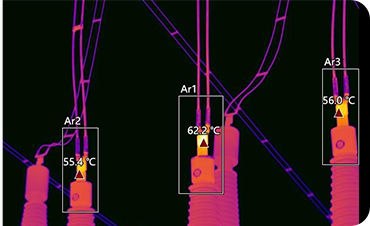

Outstanding Measurement Accuracy | |
-20°C~50°C Ambient temperature adaptation | ±2℃ (0-20米) Measurement accuracy at different distances |
±0.4°C Measurement consistency | ±0.5°C Continuous measurement stability |

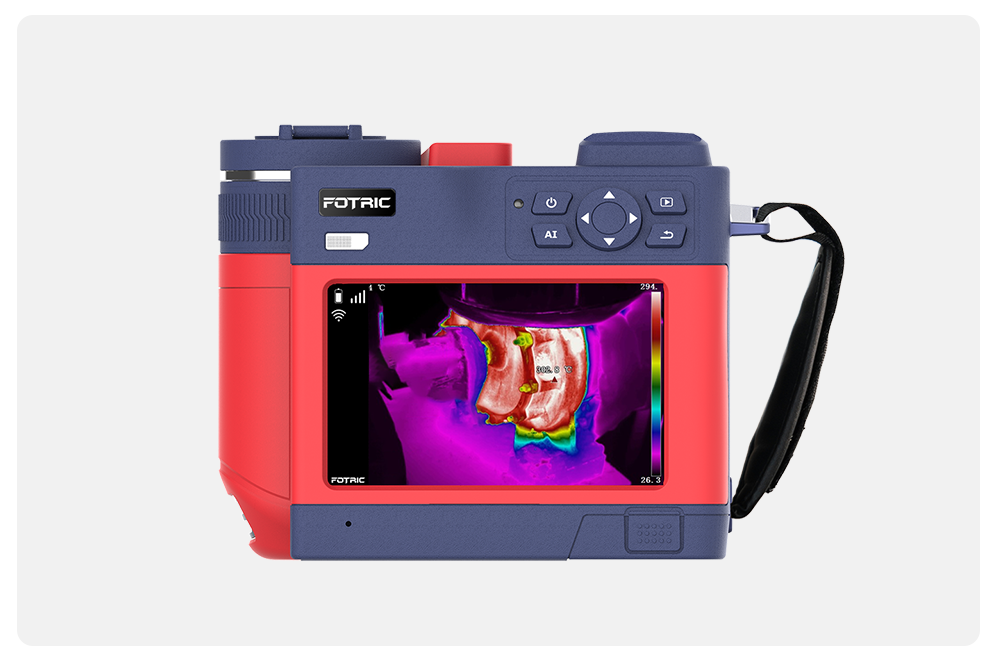

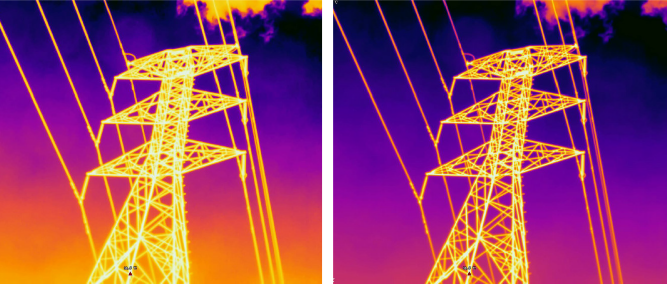

640×480 Pixel Detector & IREdge Image Detail Enhancement
Combines clear thermal gradients for analysis with detailed imagery of the inspected object.

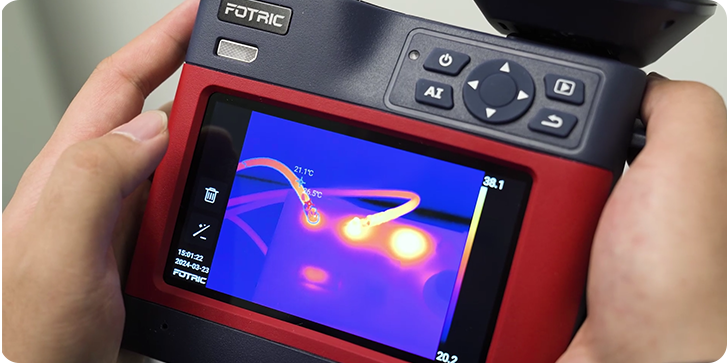

MagicThermal®
AI automatically identifies and marks target feature areas.
Rich Optional Lens Configuration
Whether long-range or close-range inspection, there is a matching lens.
Standard lenses: 46°, 25°, 12°, 7°
Dual-FOV lenses: 25° & 12°, 25° & 7°

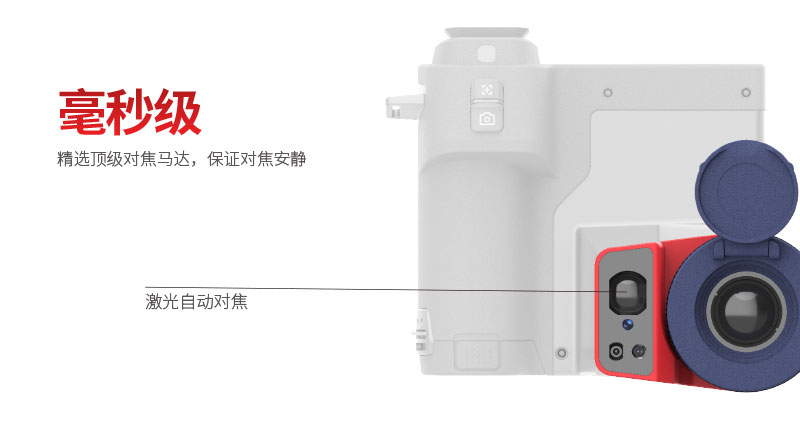

TurboFocus Intelligent Focus System
Ensures clear imaging across different spatial positions, providing a foundation for AI recognition.
 |
| 162 MEMS Digital Microphones 13 MP Visible Camera Resolution 0.3~100m Detection Range |

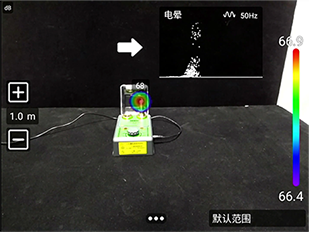

Partial Discharge Diagnosis Automatic diagnosis of discharge types: Surface discharge Floating discharge Tip (corona) discharge |
|

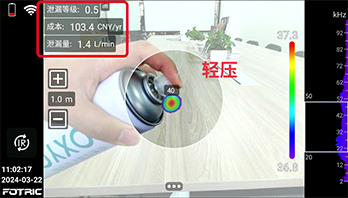

Leak Assessment Evaluates leak level, leak rate, and leak cost — helping enterprises quantify energy losses. |
|

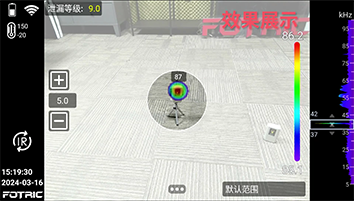

Acoustic Image Focusing Focus on a specific area while，ing irrelevant sounds.。 |
|

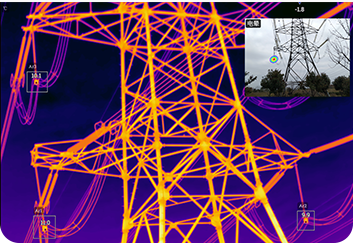

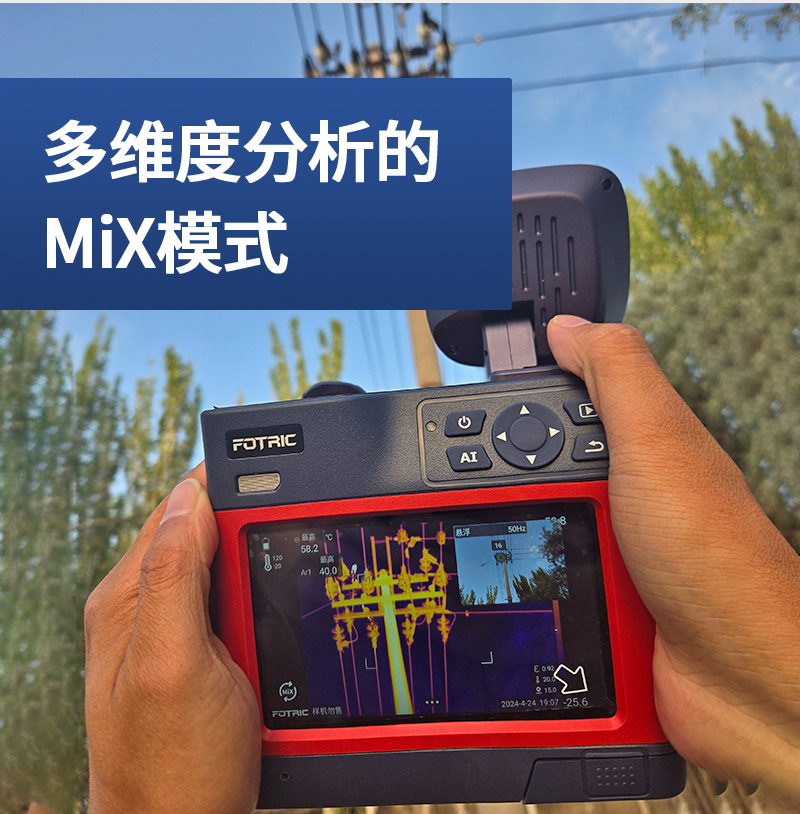

During inspection, the 5-inch LCD screen of the acoustic thermal imager simultaneously displays live thermal and acoustic images. In MiX mode, the thermal distribution and acoustic signatureof the inspected equipment appear simultaneously, enabling comprehensive and accurate hazard analysis for improved inspection efficiency and quality. |  |

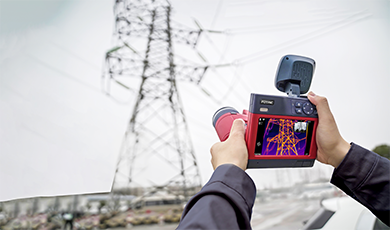

| On-Device Analysis | |
During inspection, you can tag problem images with favorites. At any time, retrieve favorited images and perform analysis directly on the device. |
|
