FOTRIC 850 Series

Product Introduction：
High-end handheld thermal imager, wide range from -20 to 1700°

Consultation Hotline：18615230752 Landline：0531-88975421

Online Consultation Online Message

Product Details
Technical parameters

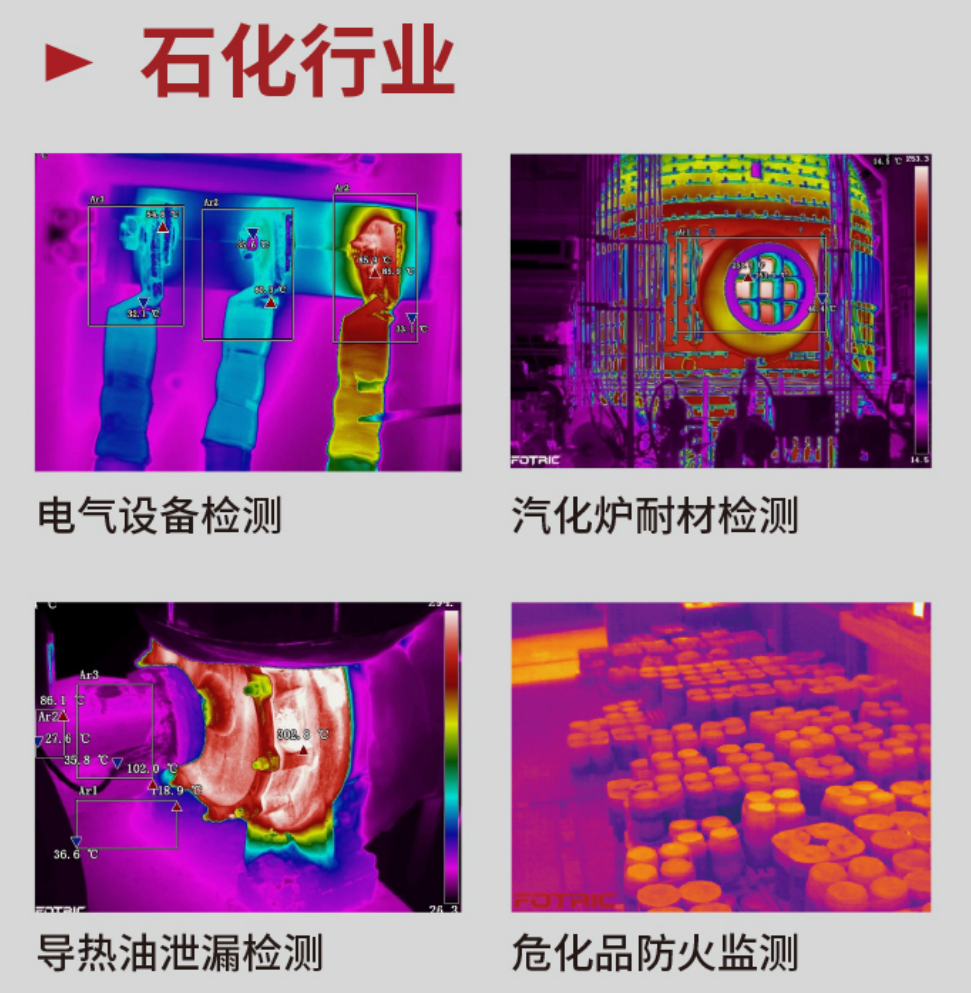

Application scenarios
Optional accessories
Contact Us

FOTRIC's brand-new TurboFocus smart focusing system perfectly combines the benefits of image autofocus and laser autofocus, and uses intelligent continuous autofocus to ensure clear imaging and avoid temperature measurement errors caused by inaccurate focusing.

Product Overview

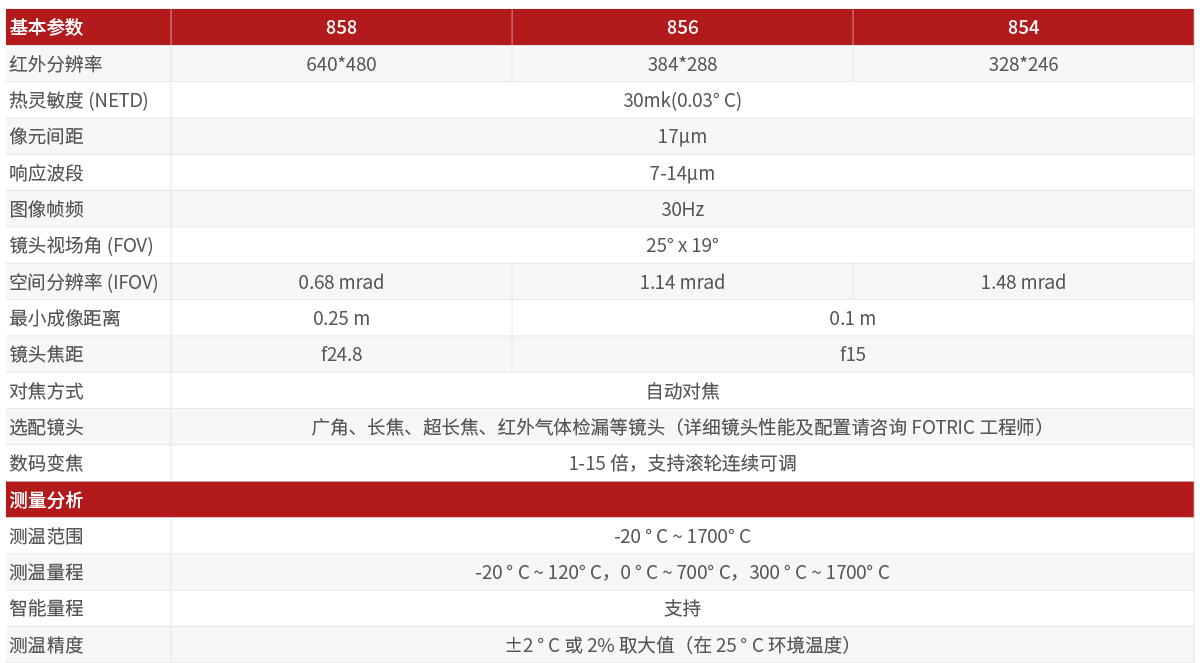

Specification	Value
Infrared Resolution	640 × 480
Super-Resolution (SR)	Enhanced to 1280 × 960
Detector Type	Uncooled infrared focal plane array
Thermal Sensitivity (NETD)	30 mK (0.03°C)
Pixel Pitch	17 µm
Spectral Response	7–14 µm
Image Frame Rate	30 Hz
Lens FOV	25° × 19°
Spatial Resolution (IFOV)	0.68 mrad
Minimum Focus Distance	0.25 m
Lens Focal Length	f24.8
Focus Mode	Auto-focus
Lens Recognition	Auto
Optional Lenses	44° × 34° (0.1 m), 12° × 9° (1.0 m), 7° × 5° (3.0 m)
Digital Zoom	1–15×, scroll wheel continuous adjustment

Specification	Value
Cloud Thermal	Not supported
TurboFocus	Supported
T-DEF	Visible light temperature measurement; adjustable thermal transparency 0%–100%
MagicThermal	When enabled, touch to display the target area in color thermal; other areas display in grayscale thermal
IREdge	Supported; infrared contour recognition
T-TWB	Supported; wide dynamic range grayscale
HawkAI	Supported
AI Body Temperature Screening	Supported

Specification	Value
Temperature Range	–20°C to 1700°C
Temperature Ranges	–20°C to 120°C; 0°C to 650°C; 300°C to 1700°C
Temperature Extension	Not supported
Smart Range	Supported
Measurement Accuracy	±2°C or ±2%, whichever is greater (at 25°C ambient)
Measurement Areas	Points: 15; Lines: 10; Areas: 10
Global Correction	Emissivity, ambient temperature, reflected temperature, relative humidity, distance, IR window (temperature & transmittance)
Area Correction	Area emissivity correction supported
Area Alarm	High/low temperature alarm for area max/min/average
Temperature Rise Function	Baseline can be area max, min, average, or custom temperature
On-Device Analysis	Direct thermal image and video analysis
Analysis Software	AnalyzIR professional thermal analysis software

Specification	Value
Display	5-inch, 1280 × 720, IPS LCD touchscreen with Gorilla Glass explosion-proof cover
Image Modes	Thermal, visible light, PIP, T-DEF
Color Palettes	16: Grey, Iron10, Iron, Rainbow, Grey10, GreyRed, MidGrey, Yellow, Rain, Rain10, Blue, GlowBow, Medical, Medical10, MidGreen, Prism; palette inversion and real-time preview switching supported
Temperature Span Mode	Auto (min 3°C), manual (min 2°C), touch-selectable max/min (min 2°C)
Color Alarm	Above, below, or between temperature
Image Overlay	Displays global max/min/average temperature, measurement parameters
Hot/Cold Tracking	Auto-tracking markers for max/min temperature

Specification	Value
Camera	13 MP industrial-grade
Storage	SD card;标配256GB，max 2 TB; hot-swappable
Capture Modes	Single frame, timed capture
File Formats	JPEG (full radiometric), visible light, IRS (full radiometric video), MP4 (non-radiometric video)
Freeze Frame	Supported for single frame and full radiometric video recording
QR/Barcode Scan	Supported; QR codes and barcodes as labels
Annotations	Voice, text, label, favorite
Full Radiometric Video	Supported; analysable thermal video recording
Non-radiometric Video	Thermal and visible light recording; view-only, not analysable
On-Device Gallery	View, edit, delete captured images and videos

Product Catalog

FOTRIC 850 Series

Product Introduction：
High-end handheld thermal imager, wide range from -20 to 1700°

Product Details

Technical parameters

Application scenarios

Optional accessories

Contact Us

Contact number

Hotline

WeChat consultation

Scan with WeChat

Online Message

回到顶部

Specification	Value
Cellular	Full-scheme 4G cellular network
WiFi	2.4 GHz & 5 GHz; 802.11a/b/g/n/ac
Bluetooth	BT4.2 LE; connects to Bluetooth headsets
USB	USB Type-C; USB 3.0/2.0 compliant; USB OTG supported
HDMI	Micro HDMI; HDMI 1.4 compliant; 60 Hz 1080p
FTP Quick Transfer	Connect to the device via WiFi/hotspot, then access data via FTP
PC Full Radiometric Video Stream	Via FOTRIC AnalyzIR software
Remote Display	Type-C 3.0 to PC (AnalyzIR); HDMI to display or projector
Remote Control	Via FOTRIC AnalyzIR software

Specification	Value
Laser	Pointer: Class 2; 635 nm; <1 mW; Rangefinder: 0.1–50 m; accuracy ±2 cm
Feature Measurement	Line length measurement; rectangular and circular area measurement within measurement zone
LED Flashlight	Flashlight and strobe mode
