Inline & Clamp-on Flow Meters: Core Pros & Cons Comparison — Which Better Fits Your Working Conditions?

Flow meters play a critical role in measuring liquid flow rates across various fields ranging from water treatment to oil and gas industries. The two most common types are inline flow meters and clamp-on flow meters. Although both serve the same fundamental purpose, they differ significantly in installation, accuracy, cost and application adaptability.

What are inline flow meters and clamp-on flow meters?

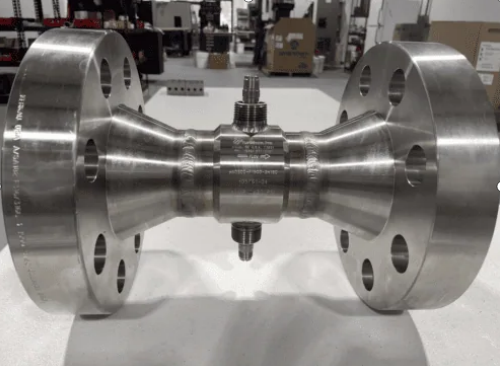

Inline Flow Meters

Inline flow meters are installed directly inside pipelines and require pipeline cutting for installation. Adapting to specific applications and fluid types, these flow meters adopt diverse technologies, including turbine, electromagnetic, ultrasonic and Coriolis principles.

Clamp-on Flow Meters

Clamp-on flow meters adopt ultrasonic sensors externally mounted on pipeline surfaces, and measure flow rates by transmitting and receiving sound waves in fluids. Since no direct contact with liquid is required, they feature non-invasive installation without pipeline cutting.

Advantages of Inline Flow Meters

High Measurement Accuracy: Direct contact with the measured fluid minimizes external interference, enabling accurate and stable flow monitoring.

Diverse Technical Types: Available in multiple types including turbine, electromagnetic, Coriolis and positive displacement meters, meeting the application requirements of various industries.

Excellent Low-Flow Adaptability: They perform better than clamp-on flow meters in small flow measurement scenarios in chemical, pharmaceutical and other industries.

Robust and Durable Structure: Manufactured with high-resistance materials, they can adapt to harsh industrial environments with high temperature, high pressure and severe working conditions.

Disadvantages of Inline Flow Meters

Complicated Installation: Pipeline cutting, operational shutdown and possible original pipeline adjustment are required, resulting in additional downtime and labor costs.

High Maintenance Requirements: Frequent cleaning and regular calibration are necessary especially when applied to dirty or corrosive media.

High Initial Investment: Professional installation and potential system renovation lead to higher overall costs compared with clamp-on meters.

Advantages of Clamp-on Flow Meters

Easy Installation Without Pipeline Cutting: Installed externally on pipelines without disrupting normal system operation or modifying existing pipelines.

Low Comprehensive Cost: Featuring fast installation and low labor consumption, they are especially suitable for temporary monitoring and portable application scenarios.

Adaptable to Inaccessible Positions: They show prominent advantages in space-limited scenarios or occasions where pipeline reconstruction is unavailable.

Simple Maintenance: With no contact with measured fluids, the meters are free from blockage, corrosion and wear, ensuring worry-free long-term operation.

Disadvantages of Clamp-on Flow Meters

Limited Measurement Accuracy: External installation is susceptible to flow fluctuation and medium composition changes, resulting in generally lower accuracy than inline flow meters.

Weak Adaptability to Small-Diameter Pipes: They are more applicable to medium and large pipelines, and the measurement performance may degrade for pipes with excessively small diameters.

Susceptible to Pipeline Conditions: Pipeline material, thickness and surface condition all affect measurement results, and additional calibration is sometimes required.

How to Select the Right Flow Meter?

Scenarios Recommended for Inline Flow Meters

- High requirements for measurement accuracy

- Applications involving low-flow velocity and high-viscosity media

- Long-term stable operation under harsh working conditions

- Allowable downtime for installation and maintenance

Scenarios Recommended for Clamp-on Flow Meters

- Requirements for fast installation without affecting existing production

- Temporary, mobile or post-renovation flow monitoring

- Prioritized cost control and maintenance convenience

- Large-diameter pipelines or pipelines unavailable for reconstruction

Conclusion

Inline and clamp-on flow meters have respective characteristics. The final selection shall comprehensively consider measurement accuracy, budget, installation conditions and subsequent maintenance. Inline meters are more suitable for scenarios pursuing high accuracy and reliability, while clamp-on meters excel in flexible installation and non-invasive operation.
