Service    Compatible gases and liquids

Wetted Materials    Type 316, 316L SS

Accuracy    0.25% FS

Temperature Limit    0 to 176°F (-18 to 80°C)

Compensated Temperature Range    0 to 176°F (-18 to 80°C)

Thermal Effect    ±0.02% FS/°F (includes zero and span)

Pressure Limits    See Catalog page

Power Requirements    10 to 28 VDC

Output Signal    4 to 20 mA

Response Time    50 ms

Loop Resistance    0 - 900 Ω maximum

Current Consumption    38 mA (maximum)

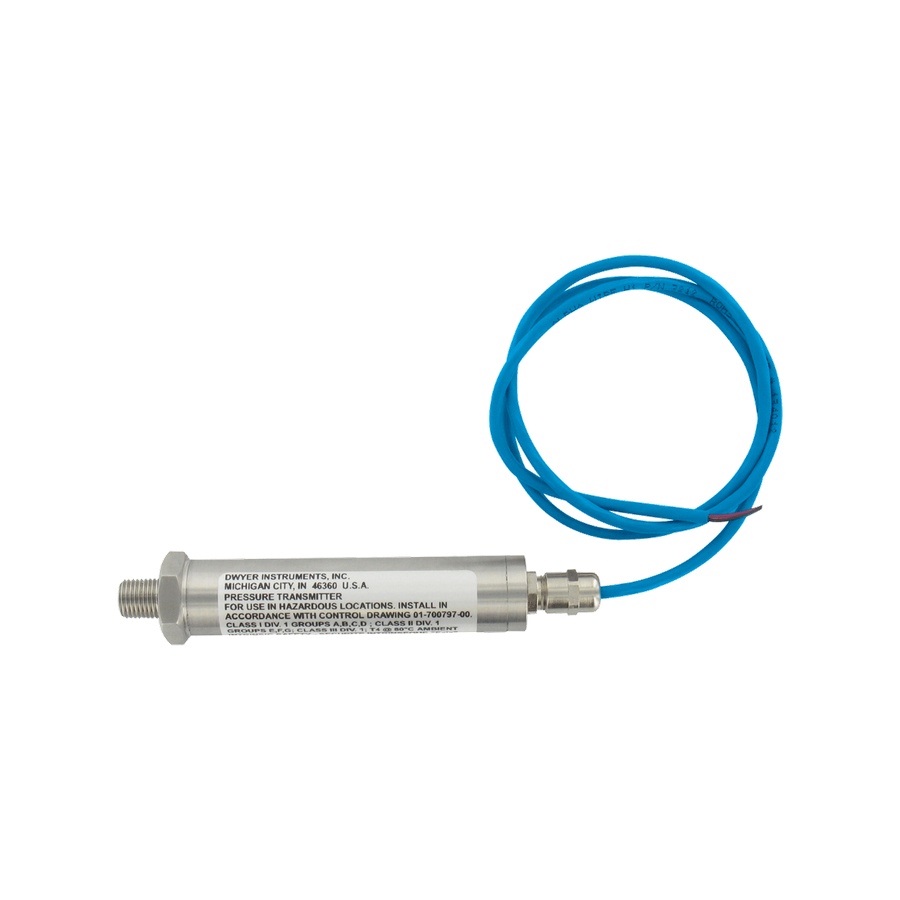

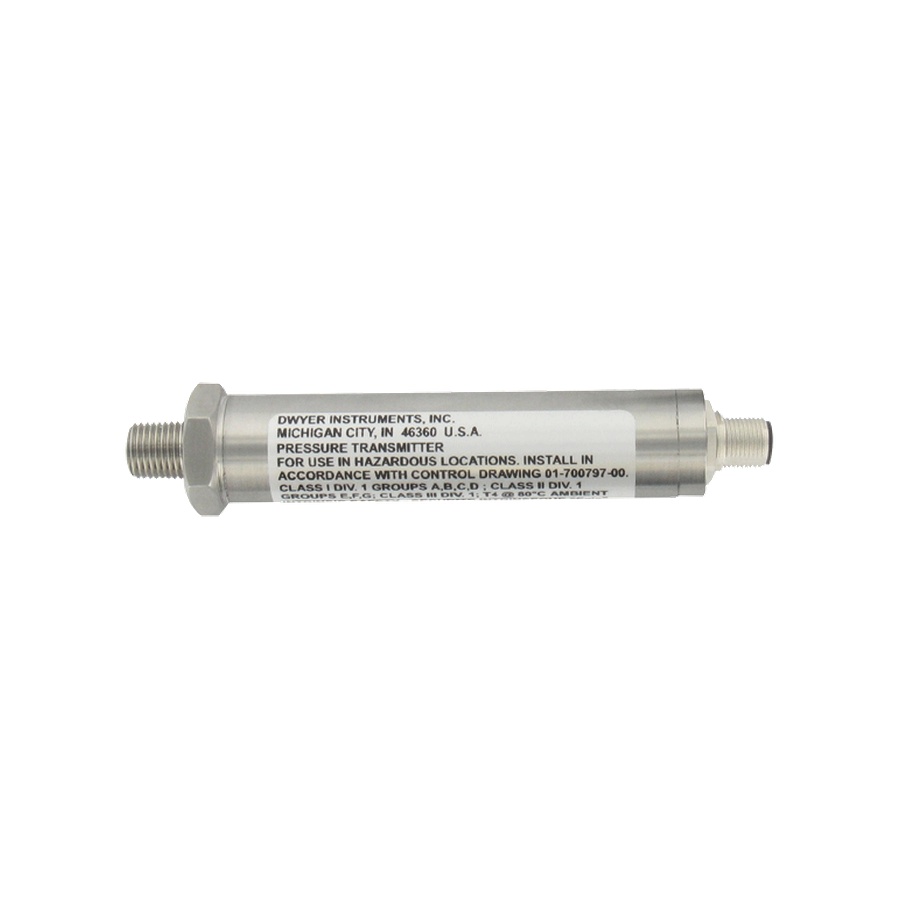

Electrical Connections    3 ft. cable or 4-pin M-12 Connector

Process Connection    1/4" male/female NPT and BSPT

Enclosure Rating    NEMA 4X (IP66)

Mounting Orientation    Mount in any position

Weight    8.9 oz (252 g)

Agency Approvals    CE, cULus Intrinsically Safe to UL Standard 913

For use in Hazardous (Classified) Locations:

Class I Div. 1 Groups A,B,C,D; Class II Div. 1 Groups E,F,G; Class III Div. 1.

Temperature Code: T4 @ 80°C ambient.

Install in accordance with control drawing 01-700797-00.

WARNING: To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing. Use with approved safety barriers using entity evaluation.
